NWTS321.1WS Schmersal Selector Switches
Part#:NWTS321.1WS
Alt. Part#:101164755
Manufacturer:Schmersal
Category:Selector Switches
Product Lifecycle:Active
Product description

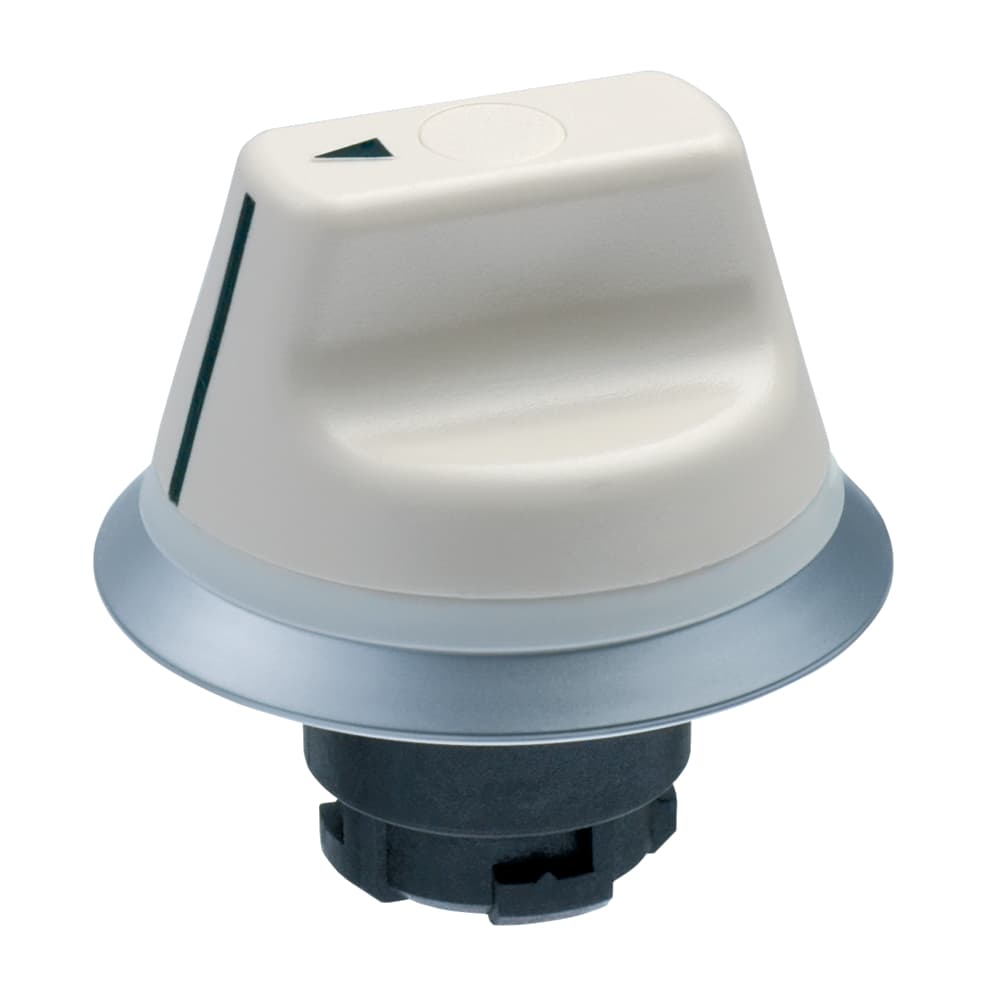

NWTS321.1WS Schmersal - Selector Switch from N Series (IP69K)
Product Details
- Ambient temperature, maximum +80 °C
- Degree of protection IP67, IP69K
- Ambient temperature, minimum +0 °C
- Thickness of the front panel, maximum 6 mm
- Spacing 50 x 60 mm
- Switching angle, right 55 °
- Tightening torque of the screw 0.6 Nm
- Height 26 mm
- Switching angle, left 35 °
- diameters for the actuating heads 44.5 mm
- Length of the handle 46 mm
- Thickness, of the front panel, minimum 1.5 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Diameter hole 22.3 mm
- Mounting Mounting flange EFM
- Touch position left
- Latching position right
- Number of plunger 2
- Fully insulated Yes
- Unlocking Rotating unlatcher
- Latching Yes
- Number of switch positions 3
- Probing possible Yes
- Colour of the front ring Silver
- Material of the front ring ABS, chrome-plated
- Colour of the handle White
- Standards EN 60947-5-1, IEC/EN 60947-1
- Sealing type Membrane, Lip gaskets
- Material of the operators ABS
- Toggle long
- Versions Toggle
- Gross weight 35 g
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NWTS321.1WS on Advantage Electric Supply is $59.00. Order now.
