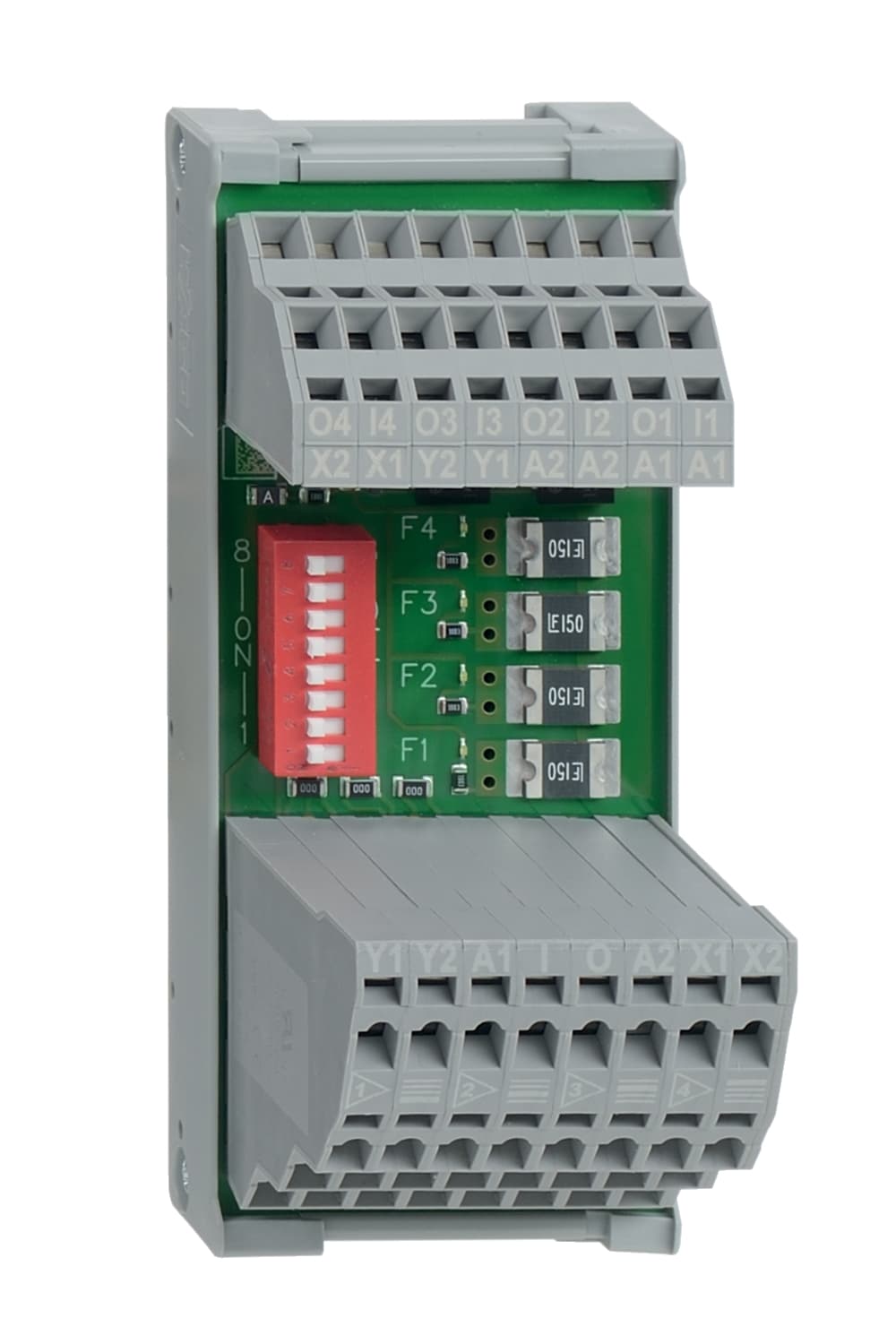

PDM-SD-4CC-SD Schmersal Safety Accessories

PDM-SD-4CC-SD on Advantage Electric Supply
Schmersal

Part#:PDM-SD-4CC-SD

Alt. Part#:103012161

Manufacturer:Schmersal

Category:Safety Accessories

Product Lifecycle:Active

Product description

PDM-SD-4CC-SD Schmersal - Input expanders; Distribution modules and fieldboxes; For SD-Interface devices; Passive distribution module for series-wiring; Cage clamps; For up to 4 safety switchgears; Fuse protected device ports; For installation in terminal boxes; Protection class I

Product Details

  • Depth
    67.7 mm
  • Gross weight
    120 g
  • Enclosure material
    Plastic, Polyamide PA 66 GV
  • Number of LEDs
    5
  • Ambient temperature, maximum
    +65 °C
  • Terminal Connector
    Cage clamps
  • Width
    45 mm
  • Rated impulse withstand voltage Uimp
    0.8 kV
  • Rated insulation voltage Ui
    32 VDC
  • Rated operating voltage
    24 VDC
  • Note (Relative humidity)
    non-condensing
  • Standards
    IEC 60947-1
  • Resistance to vibrations to EN 60068-2-6
    10 … 55 Hz, amplitude 1 mm
  • Degree of pollution to VDE 0100
    2
  • Note (Cable section)
    All indications about the cable section are including the conductor ferrules.
  • Protection rating
    III
  • Integral System Diagnostics, status
    Yes
  • Storage and transport temperature, minimum
    -40 °C
  • Relative humidity, minimum
    5 %
  • Overvoltage category
    III
  • Cable section, maximum
    1.5 mm²
  • Height
    105.4 mm
  • Cable section, minimum
    0.25 mm²
  • Degree of protection
    IP00
  • Storage and transport temperature, maximum
    +85 °C
  • Restistance to shock
    30 g / 11 ms
  • Ambient temperature, minimum
    -25 °C
  • Relative humidity, maximum
    95 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PDM-SD-4CC-SD on Advantage Electric Supply is $181.00. Order now.
