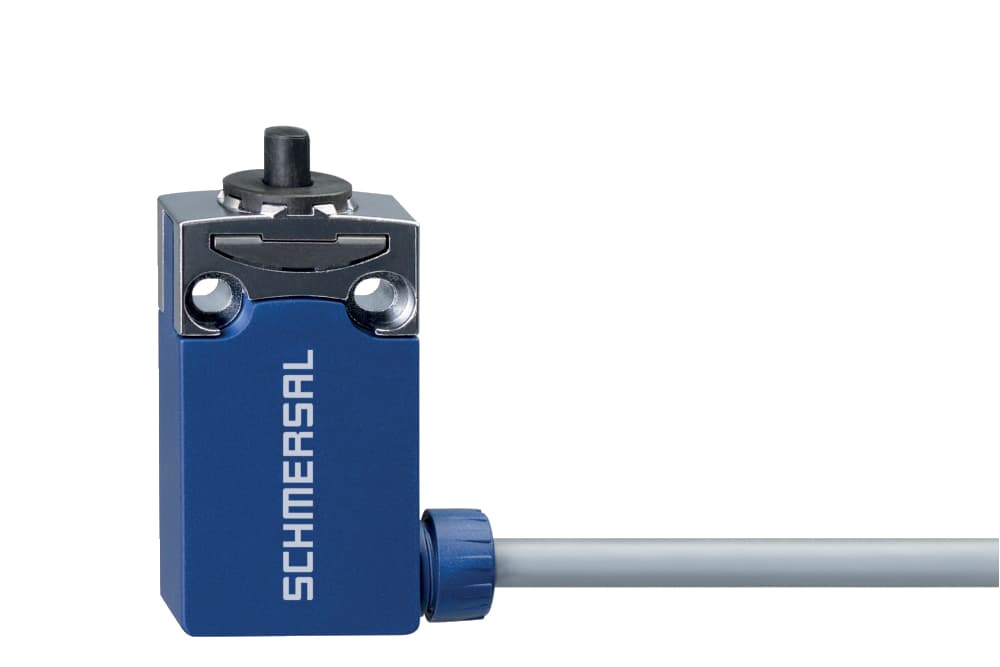

PS116-T11-LR200-S200 Schmersal Safety Switches
Part#:PS116-T11-LR200-S200
Alt. Part#:103006564
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS116-T11-LR200-S200 Schmersal - Safety rated limit switch
Product Details
- Housing construction form Norm construction design
- Standards IEC 60947-5-1
- Cable type LiYY
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Bounce duration, maximum 3 ms
- Safety functions Yes
- Terminal Connector Cable, 4-pole
- Height of sensor 64 mm
- Ambient temperature, maximum +80 °C
- Terminal (mechanical) right
- Gross weight 171.3 g
- Length of cable 2 m
- Width of sensor 31 mm
- Utilisation category DC-13 1.5 A
- Actuator type to DIN EN 50047 B
- Number of safety contacts 1
- Degree of protection IP66, IP67
- Thermal test current 5 A
- Switchover time, maximum 5.5 ms
- Material of the contacts, electrical Silver
- Positive break force, minimum 40 N
- Actuating speed, minimum 60 mm/min
- Rated insulation voltage Ui 300 V
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
- Actuating speed, maximum 0.5 m/s
- Ambient temperature, minimum -30 °C
- Number of auxiliary contacts 1
- Actuating force, minimum 10 N
- Length of sensor 16.6 mm
- Mechanical life, minimum 10,000,000 Operations
- Actuating element plunger S200
- Wire cross-section 0.5 mm2
- Rated impulse withstand voltage Uimp 4 kV
- Switching principle Creep circuit element
- Utilisation category AC-15 3 A
- Switching frequency 5,000 /h
- Switching element NO contact, NC contact
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS116-T11-LR200-S200 on Advantage Electric Supply is $77.00. Order now.
