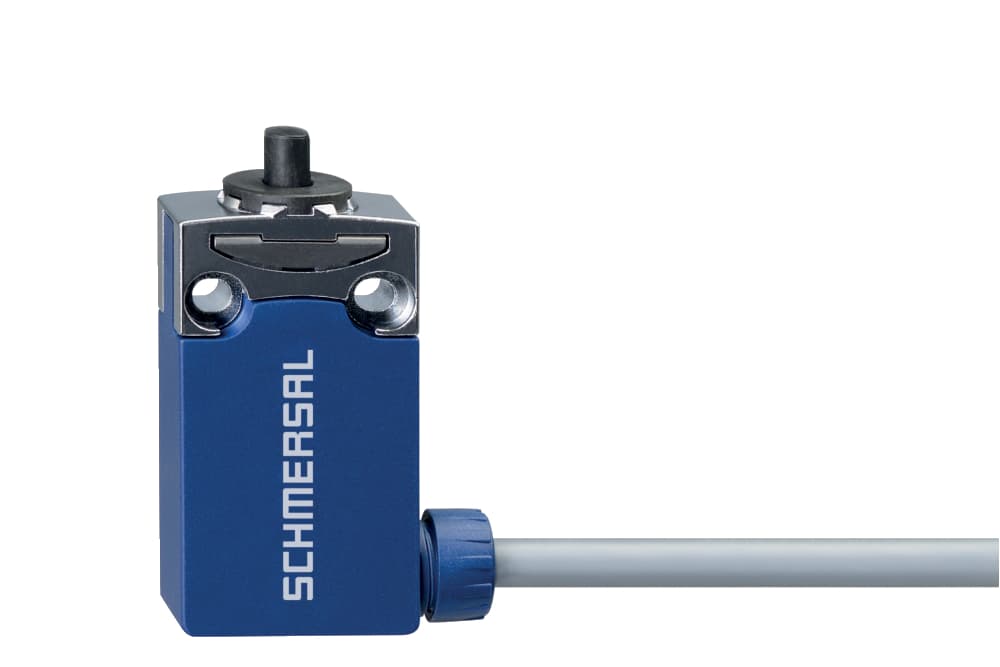

PS116-Z12-LR200-S200 Schmersal Safety Switches
Part#:PS116-Z12-LR200-S200
Alt. Part#:103006587
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS116-Z12-LR200-S200 Schmersal - Safety rated limit switch
Product Details
- Standards IEC 60947-5-1
- Positive break force, minimum 40 N
- Safety functions Yes
- Ambient temperature, maximum +80 °C
- Actuating speed, maximum 0.5 m/s
- Terminal (mechanical) right
- Number of safety contacts 2
- Actuating speed, minimum 10 mm/min
- Cable type LiYY
- Width of sensor 31 mm
- Switching principle Snap switch element
- Actuator type to DIN EN 50047 B
- Mechanical life, minimum 10,000,000 Operations
- Number of auxiliary contacts 1
- Rated insulation voltage Ui 300 V
- Utilisation category AC-15 240 VAC
- Actuating element plunger S200
- Length of cable 2 m
- Degree of protection IP66, IP67
- Utilisation category DC-13 1.5 A
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
- Gross weight 199 g
- Terminal Connector Cable, 6-pole
- Rated impulse withstand voltage Uimp 4 kV
- Bounce duration, maximum 3 ms
- Actuating force, minimum 10 N
- Wire cross-section 0.5 mm2
- Ambient temperature, minimum -30 °C
- Material of the contacts, electrical Silver
- Length of sensor 16.6 mm
- Height of sensor 64 mm
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Switching frequency 5,000 /h
- Housing construction form Norm construction design
- Thermal test current 5 A
- Switching element NO contact, NC contact
- Switchover time, maximum 5.5 ms
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS116-Z12-LR200-S200 on Advantage Electric Supply is $85.00. Order now.
