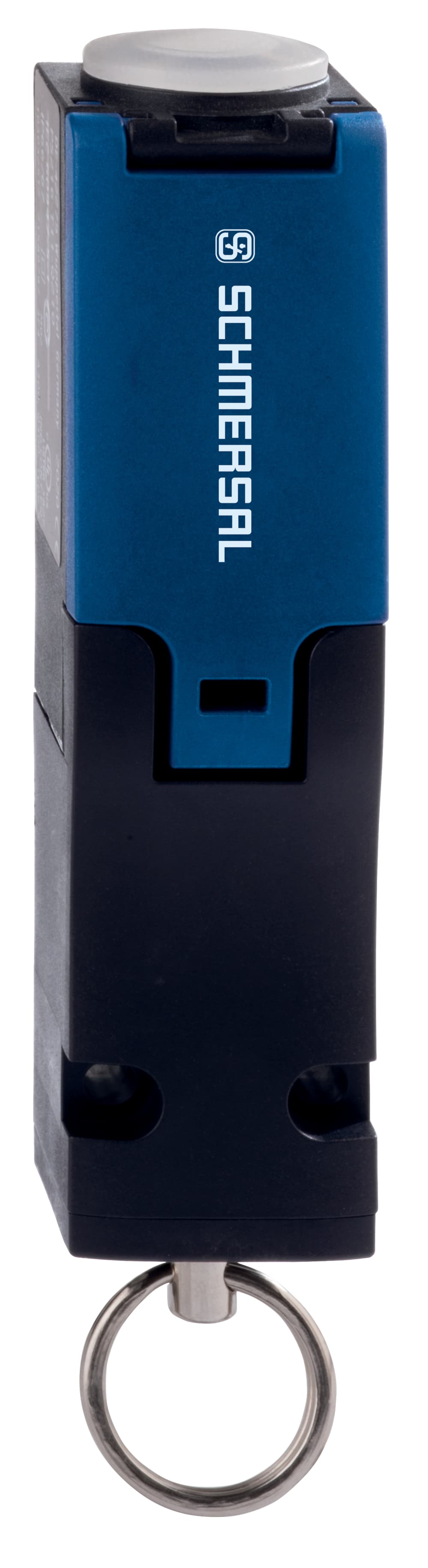

PS216-T11-Q210 Schmersal Safety Switches
Part#:PS216-T11-Q210
Alt. Part#:103032512
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS216-T11-Q210 Schmersal - thermoplastic enclosure with foldable latching cover; Small body; vertical mounting; Twisting of towing eye not possible; Progress function (ballpoint pen principle)
Product Details
- Material of the contacts, electrical Silver
- Cable section, minimum 0.34 mm²
- Rated impulse withstand voltage Uimp 4 kV
- Utilisation category DC-13 3 A
- Number of safety contacts 1
- Width of sensor 31 mm
- Overvoltage category III
- Switching element 1 NO contact, 1 NC contacts
- Housing construction form Norm construction design
- Mechanical life, minimum 100,000 Operations
- Degree of protection IP66, IP67 to EN 60529
- Degree of pollution to VDE 0100 3
- Number of auxiliary contacts 1
- Terminal Connector Screw connection
- Protection rating II
- Switching principle Slow action
- Safety functions Yes
- Ambient temperature, minimum -30 °C
- Required rated short-circuit current to EN 60947-5-1 400 A
- Positive break force, minimum 70 N
- Actuating speed, maximum 1 m/s
- Ambient temperature, maximum +80 °C
- Utilisation category AC-15 240 VAC
- Length of the wire, maximum 100 m
- Length of sensor 32.5 mm
- Rated insulation voltage Ui 250 V
- Actuating speed, minimum 1 mm/min
- Cable section, maximum 1.5 mm²
- Height of sensor 116 mm
- Thermal test current 10 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
