PS216-Z12-J200 Schmersal Safety Switches

PS216-Z12-J200 on Advantage Electric Supply
Schmersal

Part#:PS216-Z12-J200

Alt. Part#:103015021

Manufacturer:Schmersal

Category:Safety Switches

Product Lifecycle:Active

Product description

PS216-Z12-J200 Schmersal - Position switch; PS216; only for positioning tasks; Lever angle adjustable in 15° steps; Simple and quick to adjust the control elements by 45°.; thermoplastic enclosure with foldable latching cover; Quick connection technology as connection terminals rot

Product Details

  • Cable section, minimum
    0.34 mm²
  • Actuating speed, minimum
    10 mm/min
  • Rated insulation voltage Ui
    300 V
  • Required rated short-circuit current to EN 60947-5-1
    400 A
  • Switching frequency
    5,000 /h
  • Enclosure material
    Plastic, glass-fibre-reinforced
  • Gross weight
    190 g
  • Ambient temperature, maximum
    +80 °C
  • Standards
    IEC 60947-5-1
  • Number of auxiliary contacts
    1
  • Ambient temperature, minimum
    -30 °C
  • Rated impulse withstand voltage Uimp
    4 kV
  • Switching principle
    Snap switch element

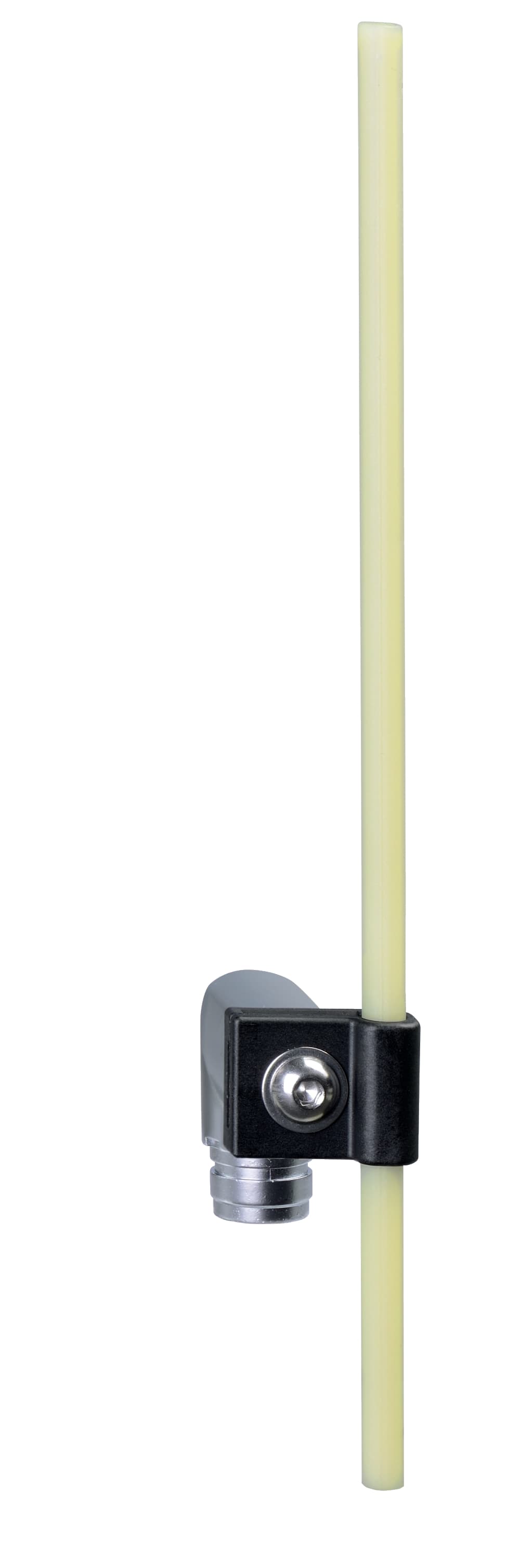

  • Actuating element
    Rod lever J200
  • Length of sensor
    32.5 mm
  • Positive break force, minimum
    40 N
  • Cable section, maximum
    1.5 mm²
  • Thermal test current
    5 A
  • Actuating speed, maximum
    1 m/s
  • Mechanical life, minimum
    10,000,000 Operations
  • Width of sensor
    31 mm
  • Switching element
    1 NO contact, 2 NC contacts
  • Material of the contacts, electrical
    Silver
  • Degree of protection
    IP66, IP67
  • Utilisation category AC-15
    3 A
  • Number of safety contacts
    2
  • Terminal Connector
    Screw connection
  • Housing construction form
    Norm construction design
  • Height of sensor
    180.5 mm
  • Utilisation category DC-13
    3 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS216-Z12-J200 on Advantage Electric Supply is $103.00. Order now.
