PS226-Z02-R200 Schmersal Safety Switches
Part#:PS226-Z02-R200
Alt. Part#:103015052
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

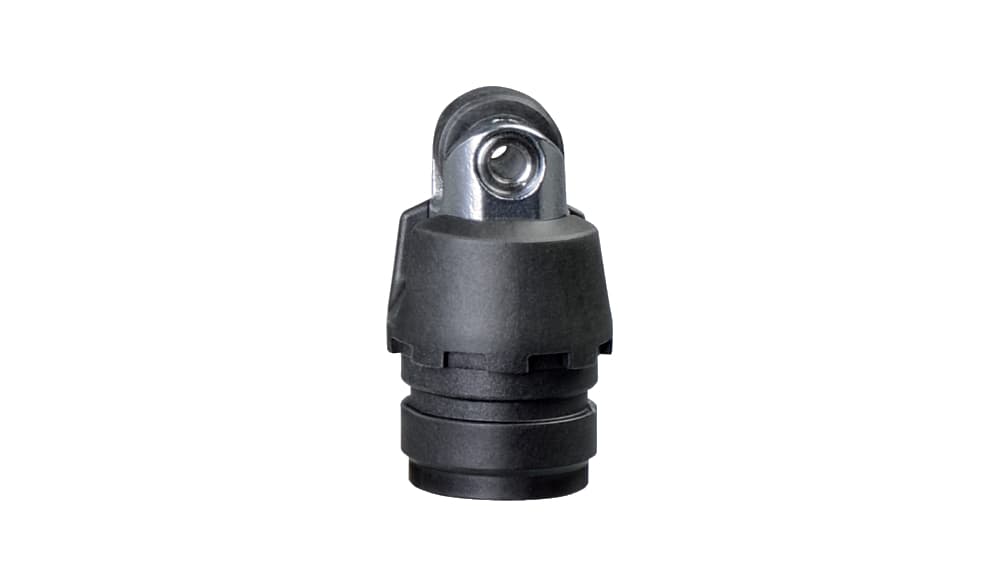

PS226-Z02-R200 Schmersal - Position switch; PS226; thermoplastic enclosure with foldable latching cover; Quick connection technology as connection terminals rotated by 45°; cable entry 2 x M20 x 1,5; Design to EN 50047; Simple and quick to adjust the control elements by 45°.
Product Details
- Number of safety contacts 2
- Cable section, minimum 0.34 mm²
- Ambient temperature, maximum +80 °C
- Switching principle Snap switch element
- Enclosure material Plastic, glass-fibre-reinforced
- Terminal Connector Screw connection
- Thermal test current 10 A
- Switching frequency 5,000 /h
- Mechanical life, minimum 10,000,000 Operations
- Rated insulation voltage Ui 300 V
- Actuating element Roller plunger R200
- Actuator type to DIN EN 50047 c
- Cable section, maximum 1.5 mm²
- Ambient temperature, minimum -30 °C
- Material of the contacts, electrical Silver
- Length of sensor 33 mm
- Safety functions Yes
- Actuating speed, minimum 10 mm/min
- Height of sensor 85.6 mm
- Utilisation category DC-13 24 VDC
- Housing construction form Norm construction design
- Width of sensor 59 mm
- Rated impulse withstand voltage Uimp 4 kV
- Gross weight 85.8 g
- Degree of protection IP66, IP67
- Utilisation category AC-15 3 A
- Standards IEC 60947-5-1
- Positive break force, minimum 40 N
- Actuating speed, maximum 0.5 m/s
- Required rated short-circuit current to EN 60947-5-1 400 A
- Switching element 2 NC contact
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
