PS316-Z12-N300 Schmersal Safety Switches
Part#:PS316-Z12-N300
Alt. Part#:103015142
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS316-Z12-N300 Schmersal - Position switch; PS316; thermoplastic enclosure with foldable latching cover; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 1 x M20 x 1,5; Design to EN 50041; Lever
Product Details
- Gross weight 165.9 g
- Cable section, maximum 1.5 mm²
- Height of sensor 168 mm
- Rated insulation voltage Ui 300 V
- Enclosure material Plastic, glass-fibre-reinforced
- Standards IEC 60947-5-1
- Number of safety contacts 2
- Terminal Connector Screw connection
- Degree of protection IP66, IP67
- Housing construction form Norm construction design
- Actuating speed, minimum 10 mm/min
- Actuating speed, maximum 1 m/s
- Utilisation category DC-13 3 A
- Material of the contacts, electrical Silver
- Length of sensor 37 mm
- Thermal test current 5 A
- Switching element 1 NO contact, 2 NC contacts

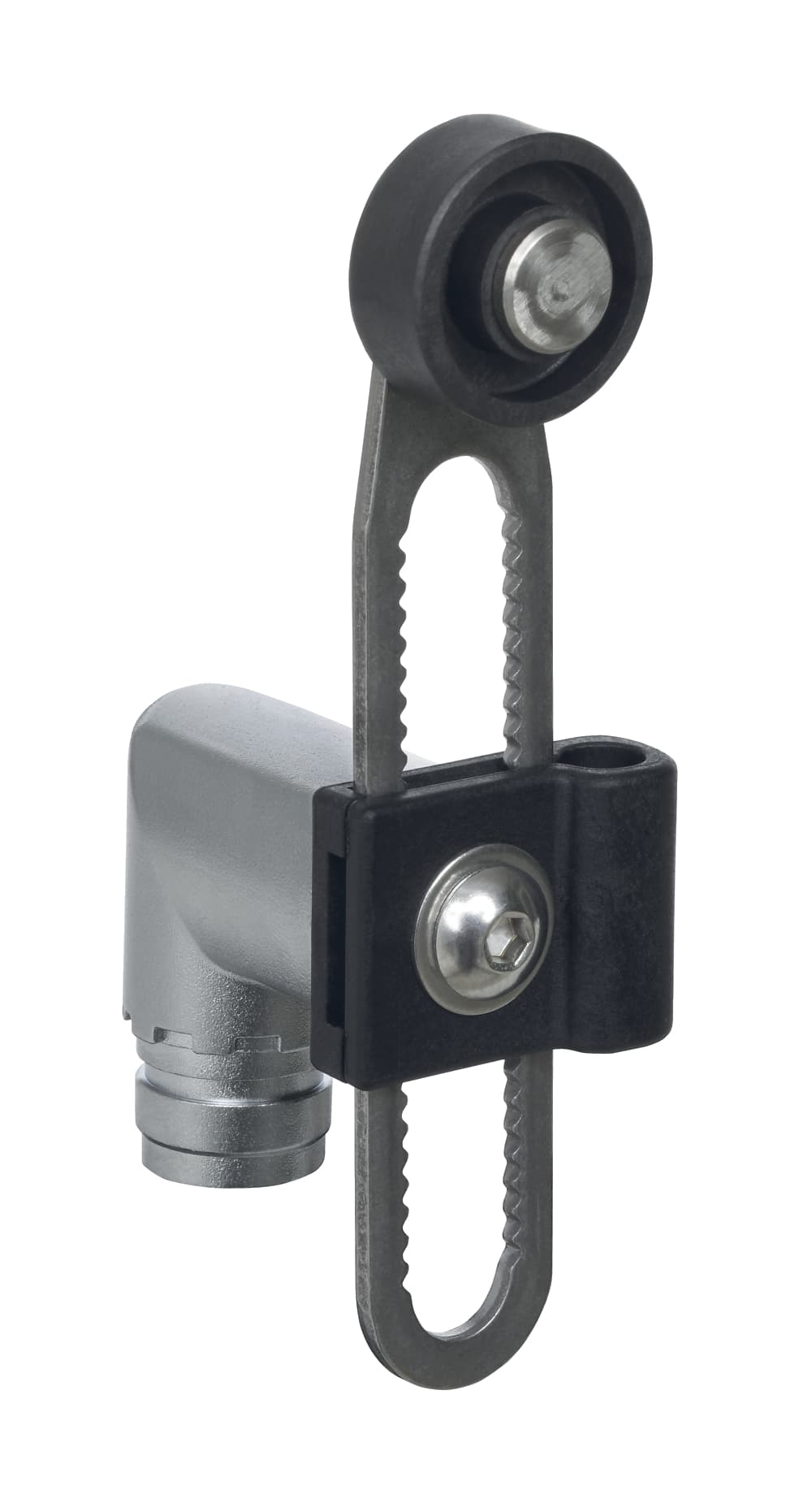

- Actuating element Roller lever N300
- Positive break force, minimum 50 N
- Ambient temperature, maximum +80 °C
- Switching frequency 5,000 /h
- Mechanical life, minimum 10,000,000 Operations
- Safety functions Yes
- Width of sensor 41 mm
- Switching principle Snap switch element
- Utilisation category AC-15 240 VAC
- Number of auxiliary contacts 1
- Cable section, minimum 0.34 mm²
- Rated impulse withstand voltage Uimp 4 kV
- Ambient temperature, minimum -30 °C
- Required rated short-circuit current to EN 60947-5-1 400 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS316-Z12-N300 on Advantage Electric Supply is $109.00. Order now.
