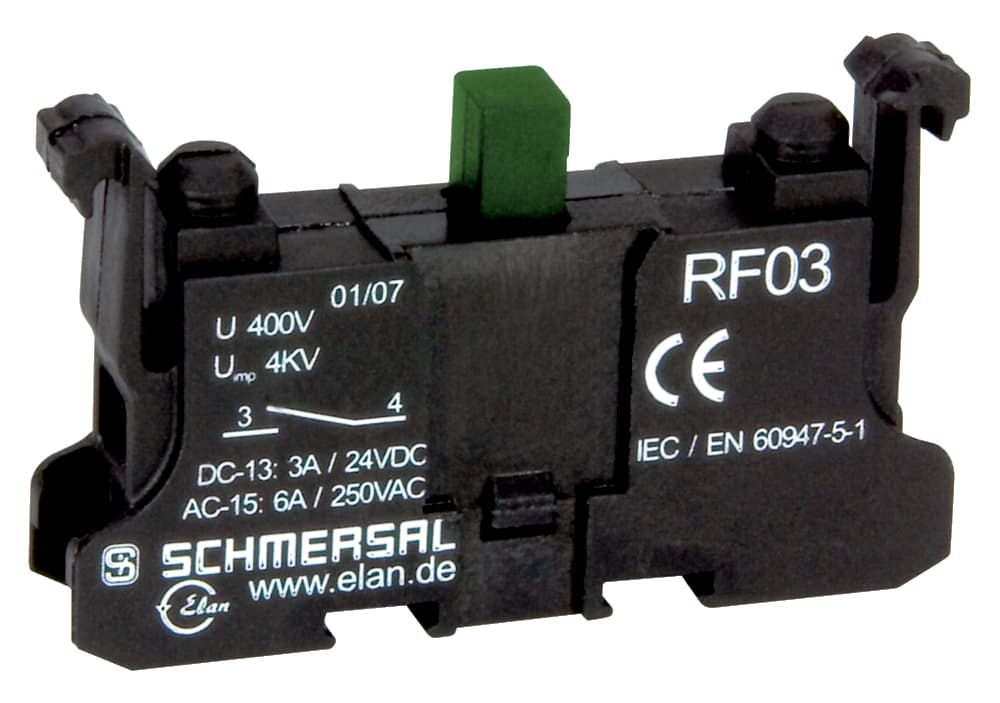

RF03.1 Schmersal Safety Accessories

Product Details

• Switching element
  Normally open contact (NO)
• Switching principle
  Slow action
• Switching frequency
  1,200 /h
• Suitable for low-voltages
  ≥ 5 V / ≥ 1 mA
• Utilisation category DC-13
  24 VDC
• Utilisation category AC-15
  6 A
• Rated impulse withstand voltage Uimp
  4 kV
• Thermal test current
  10 A
• Rated insulation voltage Ui
  400 V
• Ambient temperature, minimum
  -25 °C
• Ambient temperature, maximum
  +75 °C
• Degree of protection of the switch rooms
  IP40
• Degree of protection of clips or terminals
  IP20
• Height
  25.5 mm
• Width
  9 mm
• Length
  44 mm
• Tightening torque of Clips
  1 Nm
• Terminal Connector
  Screw connection
• Cable section, minimum
  0.5 mm², rigid, 0.5 mm², flexible
• Cable section, maximum
  2.5 mm², rigid, 1.5 mm², flexible
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Mounting flange position
1; 2; 3
Contact opening
3 mm
positive break travel
2 mm
Material of the contacts, electrical
Silver
Standards
EN 60947-5-1, IEC/EN 60947-1
Contact labelling
13-14
Number of shutters
1
Gross weight
20 g
Installation instructions
pluggable
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Mechanical life, minimum
10,000,000 Operations
