SDG01.1044 Schmersal Safety Switches
Part#:SDG01.1044
Alt. Part#:101020910
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

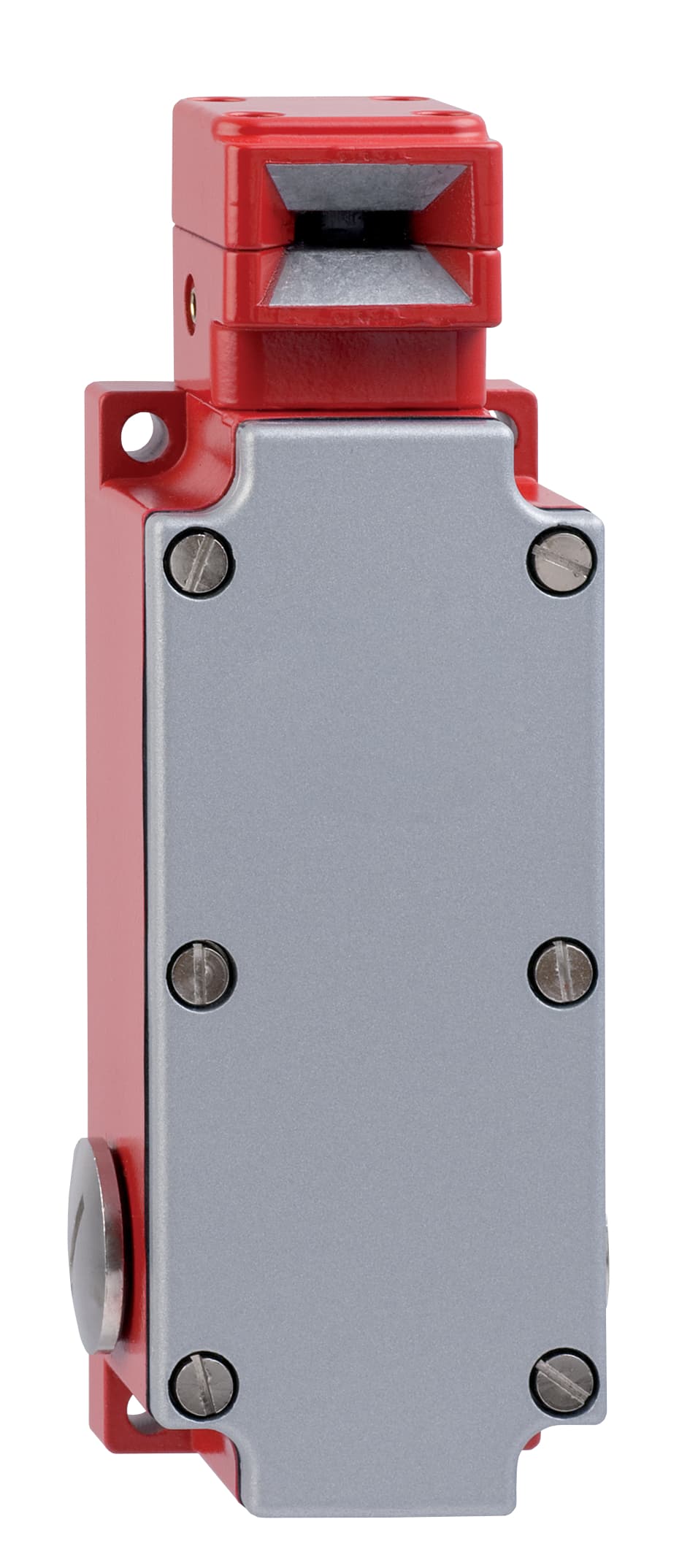

SDG01.1044 Schmersal - Safety switch with separate actuator; Head positioned to the front; Metal enclosure; 50 mm x 152 mm x 43 mm; Long life
Product Details
- Number of safety contacts 1
- Note (Positive break force) per NC
- Degree of protection IP67 to EN 60529
- Switching element NO contact, NC contact
- Enclosure coating material painted
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Rated insulation voltage Ui 400 V
- Switching principle Creep circuit element
- Standards EN 60947-5-1, EN ISO 14119, BG-GS-ET-15
- Material of the contacts, electrical Silver
- Height of sensor 152 mm
- Thermal test current 10 A
- Gross weight 400 g
- Positive break force, minimum 5 N
- Width of sensor 50 mm
- Utilisation category AC-15 8 A
- Number of auxiliary contacts 2
- Cable section, minimum 0.5 mm²
- Ambient temperature, maximum +70 °C
- Enclosure material Aluminium
- Cable section, maximum 2.5 mm²
- Ambient temperature, minimum -25 °C
- Utilisation category DC-13 5 A
- positive break travel 11 mm
- Length of sensor 43 mm
- Mechanical life, minimum 1,000,000 Operations
- Terminal Connector Screw connection
- Rated impulse withstand voltage Uimp 2.5 kV
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SDG01.1044 on Advantage Electric Supply is $269.00. Order now.
