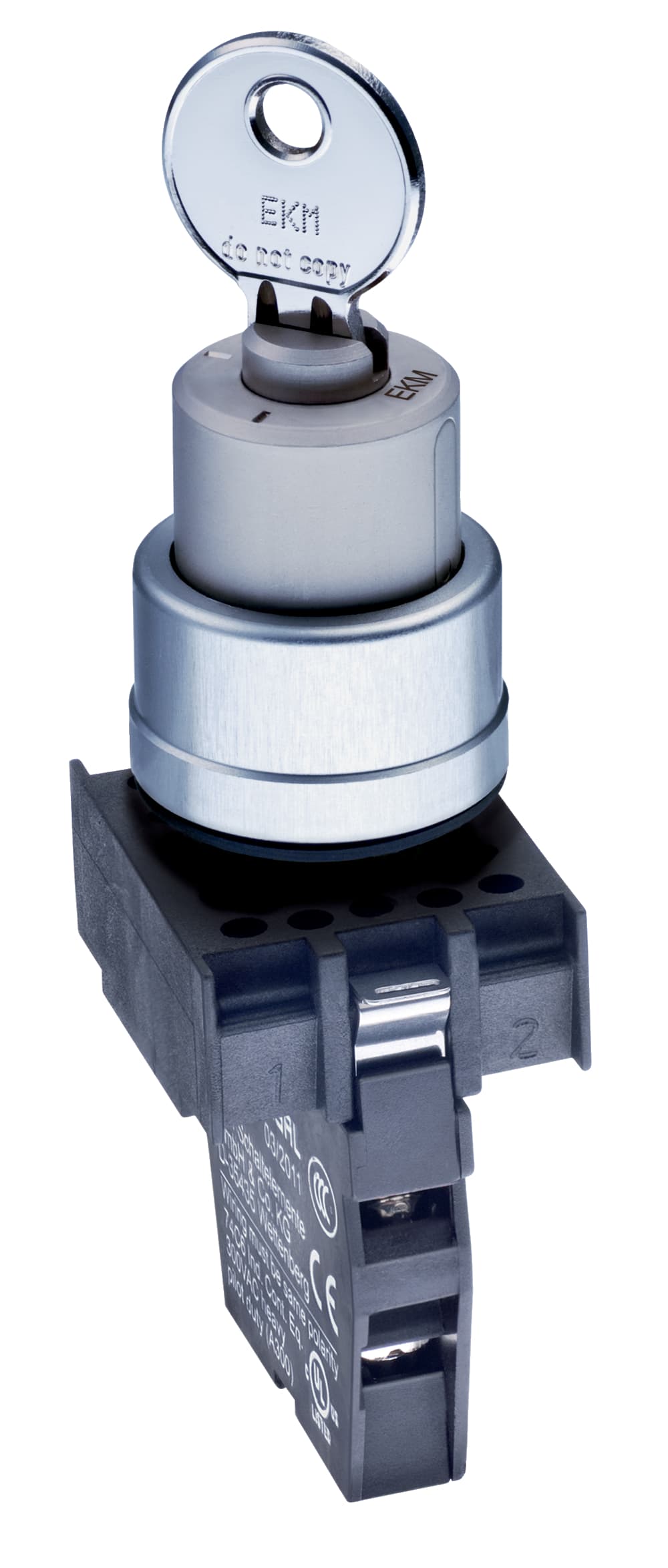

SHGV/ESS21S2/200/103 Schmersal Electronic Components

Product Details

• Standards
  IEC 60947-5-1, EN ISO 14119, IEC/EN 60947-1
• Unlocking
  Rotating unlatcher
• Latching
  Yes
• Cable section, minimum
  0.5 mm², rigid, 0.5 mm², flexible
• Diameter hole
  22.3 mm
• Thermal test current
  10 A
• Switching principle
  Slow action
• Material of the cylinder lock
  Steel
• Gross weight
  136 g
• Number of plunger
  1
• Thickness of the front panel, maximum
  6 mm
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Suitable for low-voltages
  ≥ 5 V / ≥ 3.2 mA
• Utilisation category AC-15
  8 A
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Number of switch positions
  2
• Terminal Connector
  Screw connection
• Degree of protection
  IP65
• Rated insulation voltage Ui
  400 V
• Resistant to vibration
  Resistance to vibration: 20 g / 10…200 Hz
Sealing type
Membrane, Lip gaskets, Form seals
Number of auxiliary contacts
1
Key number
CODE_KEY_NUMBER200
Diameter of the front ring
29.5 mm
Ambient temperature, minimum
-25 °C
Switching element
NC contact, NO contact
Material of the front ring
Aluminium
Fully insulated
Yes
Mounting
mounting flange
diameters for the cylinder lock
22 mm
Ambient temperature, maximum
+75 °C
Switching frequency
5 /h
Colour of the cylinder lock
Silver
Colour of the front ring
Silver
Latching position
right
Tightening torque of Clips
1 Nm
Spacing
40 x 50 mm
Bounce duration, maximum
5 ms
Versions
Key - Selector switch - Front plate mounting
Installation conditions (mechanical)
arbitrarily
Colour of key head
Silver
Mechanical life, minimum
100,000 Operations
Length x Width x Height
Height with key (and contact element): 60 mm (119 mm)
Degree of protection of the switch rooms
IP40
Material of the contacts, electrical
Silver
Colour of the Contact element
Black
Tightening torque of the screw
0.6 Nm
Key withdrawal position
Position I, 90°
Cable section, maximum
2.5 mm², rigid, 2.5 mm², flexible
Diameter hole, with tolerance indication
22.3 + 0.4 mm
Thickness, of the front panel, minimum
1 mm
Restistance to shock
110 g / 4 ms
Degree of protection of clips or terminals
IP20
Utilisation category DC-13
5 A
