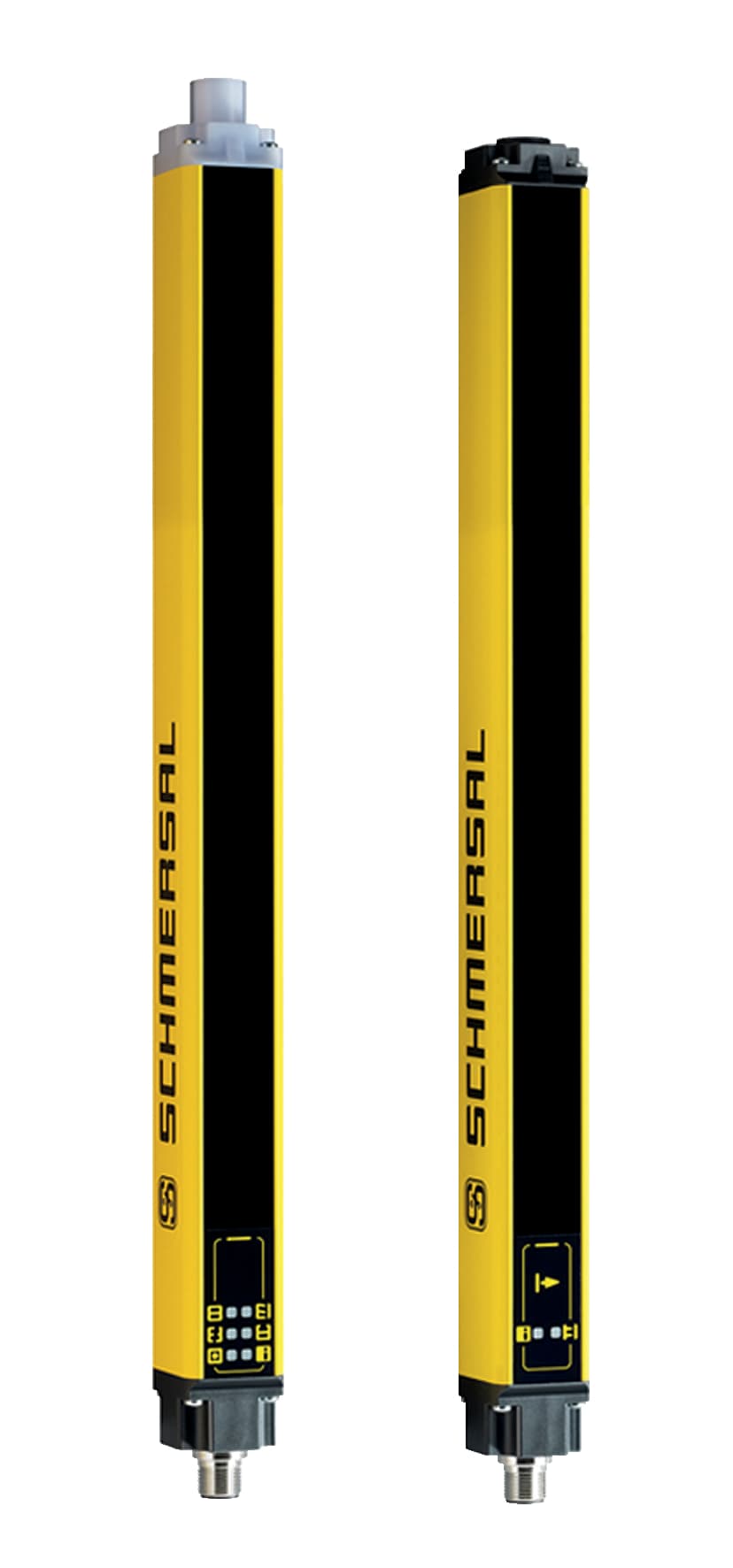

SLC445-ER-1690-30-01 Schmersal Safety Light Curtains

Product Details

• Override
  Yes
• Restart interlock (manual reset)
  Yes
• Beam coding available
  Yes
• Terminal, Connector, Transmitter
  Connector plug M12, 4-pole
• Storage and transport temperature, minimum
  -25 °C
• Gross weight
  2,880 g
• 7-segment display
  Yes
• Height of the protection field
  1,690 mm
• Terminal Connector
  Connector
• Ambient temperature, minimum
  -25 °C
• Muting function
  Yes
• Clock control possible
  Yes
• Integral System Diagnostics
  Yes
• Range, protection field, minimum
  300 mm
• Height of the Sensor (Receiver)
  1,781 mm
• Protection rating
  III
• Versions
  p-type
• Standards
  EN 61496-1, CLC/TS 61496-2
• Number of beams
  84
• Number of fail-safe digital outputs
  2
Terminal connector, Recipient
Connector plug M12, 12-pole
Height of the Sensor (Transmitter)
1,771 mm
Switching voltage OSSD, HIGH signal
24 V
Hide function
Yes
Range, protection field, maximum
10,000 mm
Length of the connectable cable, maximum
100 m
Voltage type
DC (direct current)
Enclosure material
Aluminium
Contactor control integrated
Yes
Reduced resolution
Yes
Width of sensor
27.8 mm
Ambient temperature, maximum
+50 °C
Detection ability for test bodies at v = 1.6 m/s
30 mm
Length of sensor
33 mm
Storage and transport temperature, maximum
+70 °C
Electrical power consumption of the receiver, maximum
10 W
Reaction time, maximum
20 ms
Integral System Diagnostics, status
Yes
Wave length of the sensor
880 nm
Degree of protection
IP67 to EN 60529
Output current, (fail-safe output), maximum
0.25 A
Electrical power consumption of the transmitter, maximum
5 W
