T4V7H 335-03Z-RMS-2138 Schmersal Electronic Components
Part#:T4V7H 335-03Z-RMS-2138
Alt. Part#:101155760
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description

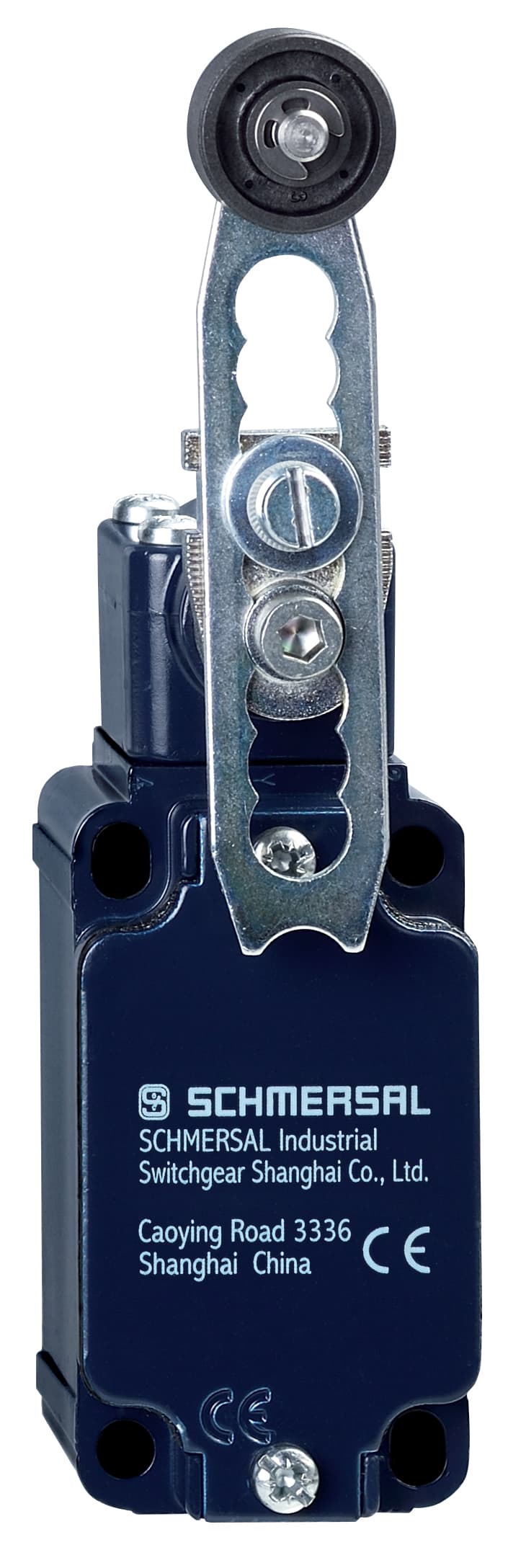

Position switch; 335; 1 Cable entry M 20 x 1.5; Metal enclosure; Wide range of alternative actuators; Good resistance to oil and petroleum spirit; 40,5 mm x 76 mm x 38 mm; Actuator heads can be repositioned by 4 x 90°; Design to EN 50041
Product Details
- Bounce duration, maximum 2 ms
- Switching frequency 5,000 /h
- Switching principle Slow action
- Switching element Opener (NC)
- Utilisation category DC-13 4 A
- Utilisation category AC-15 230 VAC
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Thermal test current 10 A
- Rated impulse withstand voltage Uimp 4 kV
- Rated insulation voltage Ui 250 V
- Ambient temperature, maximum +80 °C
- Ambient temperature, minimum -30 °C
- Height of sensor 171.5 mm
- Width of sensor 40.5 mm
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Cable section, maximum 2.5 mm²
- Length of sensor 57.3 mm
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Cable section, minimum 0.75 mm²
- Mechanical life, minimum 30,000,000 Operations
- Terminal Connector Screw connection
- Actuating torque, minimum 0.3 Nm
- Note (Switchover time) Switchover time in accordance with actuating speed
- Note (Actuating speed) Actuating speed with actuating angle 30° to switch axis
- Actuating element Roller lever
- Actuating speed, maximum 2.5 m/s
- Gross weight 300 g
- Number of safety contacts 3
- Roller material Plastic
- Enclosure coating material painted
- Lever material Metal film
- Safety functions Yes
- Enclosure material Light alloy die-casting
- Material of the contacts, electrical Silver
- Housing construction form Norm construction design
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
