T4VH 336-11Z-M20 Schmersal Electronic Components
Part#:T4VH 336-11Z-M20
Alt. Part#:101158892
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description

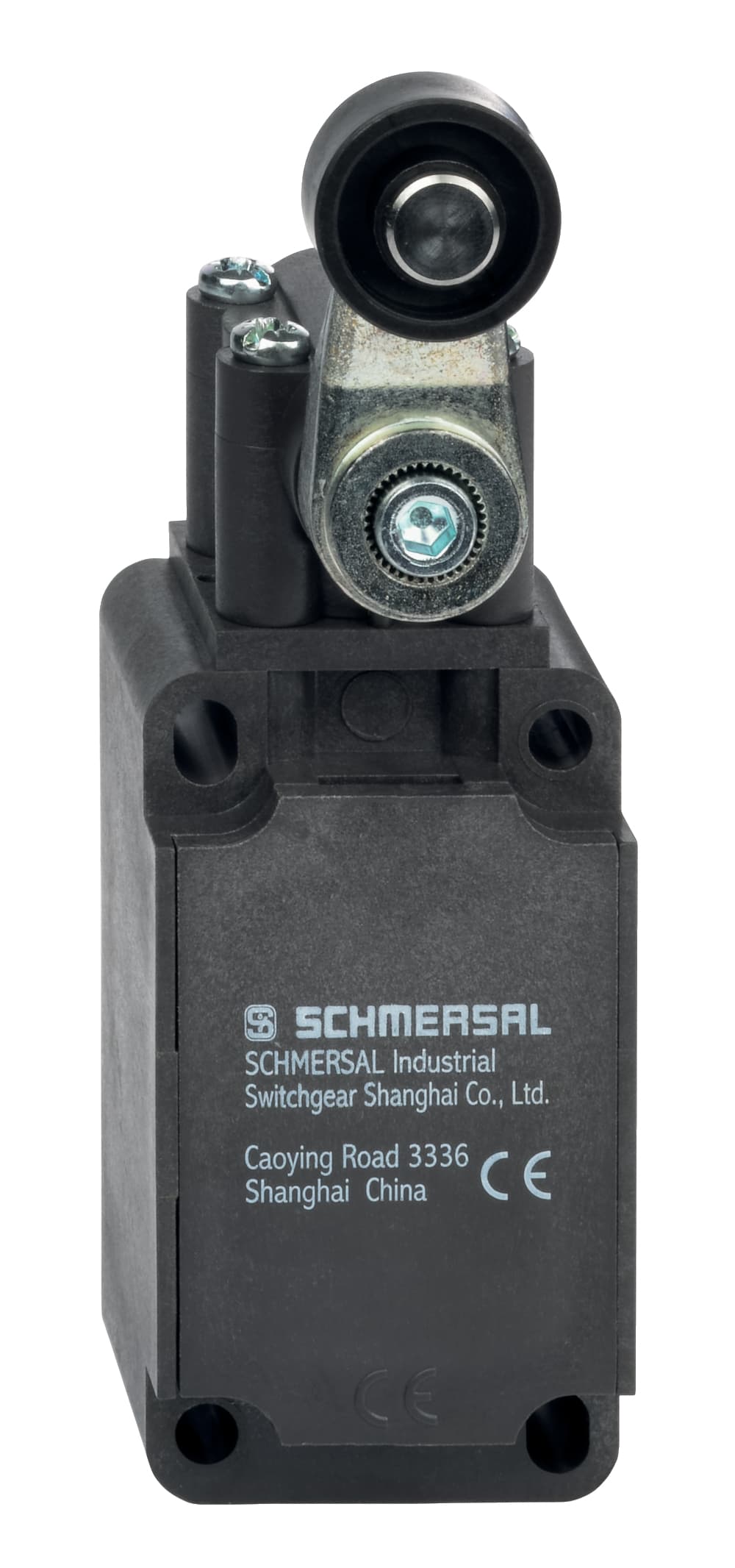

Position switch; 336; 1 Cable entry M 20 x 1.5; Design to EN 50041; Lever angle adjustable in 10° steps; Thermoplastic enclosure; Double-insulated; Good resistance to oil and petroleum spirit; Wide range of alternative actuators; Actuator heads can be rep
Product Details
- Lever material Metal film
- Actuating element Roller lever
- Ambient temperature, minimum -30 °C
- Width of sensor 40.5 mm
- Material of the contacts, electrical Silver
- Roller material Plastic
- Note (Switchover time) Switchover time in accordance with actuating speed
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Thermal test current 10 A
- Switching principle Creep circuit element
- Number of safety contacts 1
- Number of auxiliary contacts 1
- Length of sensor 60.5 mm
- Ambient temperature, maximum +80 °C
- Switching element NO contact, NC contact
- Gross weight 160 g
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Actuating torque, minimum 0.3 Nm
- Height of sensor 129.5 mm
- Housing construction form Norm construction design
- Cable section, minimum 0.75 mm²
- Actuating speed, maximum 2.5 m/s
- Rated insulation voltage Ui 500 V
- Switching frequency 5,000 /h
- Safety functions Yes
- Note (Actuating speed) Actuating speed with actuating angle 30° to switch axis
- Cable section, maximum 2.5 mm²
- Rated impulse withstand voltage Uimp 6 kV
- Actuator type to DIN EN 50041 A
- Terminal Connector Screw connection
- Utilisation category AC-15 230 VAC
- Mechanical life, minimum 30,000,000 Operations
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Bounce duration, maximum 2 ms
- Utilisation category DC-13 4 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T4VH 336-11Z-M20 on Advantage Electric Supply is $119.00. Order now.
