TF 232-40 Schmersal Electronic Components

Name: TF 232-40
Brand: Schmersal

Part#:TF 232-40

Alt. Part#:101181528

Manufacturer:Schmersal

Category:Electronic Components

Product Lifecycle:Active

Product description

Automation technology; Foot switch; 4 Contacts; Also available as safety foot switch; Low operating height of pedal; Cable entry M 20 x 1.5; High level of stability; Metal enclosure; single-pedal types

Product Details

Colour of the housing
RAL 9006 (White aluminum)
Probing possible
Yes
Gross weight
1,100 g
Material of the protective shield
Aluminium
Enclosure material
Aluminium
Material of the cover
Aluminium
Enclosure coating material
powder-coated
Mechanical life, minimum
1,000,000 Operations
Utilisation category AC-15
4 A
Switching element
Normally open contact (NO)
Switching principle
Slow action
Standards
BG-GS-ET-15, DIN VDE 0660-200, EN 60947-5-1
Material of the pedal
Glass-fibre, reinforced thermoplastic
Cable section, maximum
1 x 2.5 mm²
Terminal Connector
Screw connection
Number of shutters
4
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Height
189 mm
Width
170 mm
Degree of protection
IP65 to EN 60529

Ambient temperature, minimum

-25 °C

Thermal test current

10 A

Ambient temperature, maximum

+70 °C

Rated impulse withstand voltage Uimp

6 kV

Rated insulation voltage Ui

500 V

Depth

274 mm

Utilisation category DC-13

24 VDC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TF 232-40 Related Documents

Datasheet-1637115951285.pdf

Similar products from: Schmersal Electronic Components

Z 6881-11-1-80R-I

Schmersal

Micro switches; screw or spade terminals; Thermoplastic enclosure

3 in stock

Manufacturer warranty

TF 232-40 Schmersal

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare TF 232-40 with other Electronic Components products

Colour of the housing

Probing possible

Gross weight

Material of the protectiv...

Enclosure material

Material of the cover

Enclosure coating materia...

Mechanical life, minimum

Utilisation category AC-1...

Switching element

Selected product

Backordered

TF 232-40

Schmersal

Automation technology; Foot switch; 4 Contacts; Also available as safety foot switch; Low operating ...

Colour of the housingRAL 9006 (White aluminum)

Probing possibleYes

Gross weight1,100 g

Material of the protective shieldAluminium

Enclosure materialAluminium

Material of the coverAluminium

Enclosure coating materialpowder-coated

Mechanical life, minimum1,000,000 Operations

Utilisation category AC-154 A

Switching elementNormally open contact (NO)

3 in stock

Z 6881-11-1-80R-I

Schmersal

Micro switches; screw or spade terminals; Thermoplastic enclosure

Colour of the housing-

Probing possible-

Gross weight45 g

Material of the protective shield-

Enclosure materialGlass-fibre, reinforced ther...

Material of the cover-

Enclosure coating material-

Mechanical life, minimum-

Utilisation category AC-15-

Switching element-

4 in stock

CKM-03

Mencom

Standard, CK series, Male Rectangular Insert, size 21.21, 4 pin, 10 amp, Screw, Silver Plated Contac...

Colour of the housing-

Probing possible-

Gross weight-

Material of the protective shield-

Enclosure material-

Material of the cover-

Enclosure coating material-

Mechanical life, minimum-

Utilisation category AC-15-

Switching element-

About the manufacturer

Advantage Electric Supply is an authorized Schmersal distributor, proudly offering a comprehensive range of industrial safety solutions that ensure the protection and efficiency of your operations. Schmersal is renowned for their extensive portfolio of safety products designed to meet the highest standards of industrial safety protocols. With a long-standing reputation for innovation and quality, ...

Relevant products

TF 232-20

Verified stock: 0

Foot switch; 2 Contacts; Also available as safety foot switch; Low operating height of pedal; Cable entry M 20 x 1.5; High level of stability; Metal enclosure; single-pedal types

Schmersal

TF 232-02

Verified stock: 0

Foot switch; 2 Contacts; Also available as safety foot switch; Low operating height of pedal; Cable entry M 20 x 1.5; High level of stability; Metal enclosure; single-pedal types

Schmersal

TF 232-20HD

Verified stock: 0

Foot switch; 2 Contacts; 3-phase actuation with pressure point; Also available as safety foot switch; Low operating height of pedal; Cable entry M 20 x 1.5; High level of stability; Metal enclosure; single-pedal types

Schmersal

TF 232-22

Verified stock: 0

Foot switch; 4 Contacts; Also available as safety foot switch; Low operating height of pedal; Cable entry M 20 x 1.5; High level of stability; Metal enclosure; single-pedal types

Schmersal

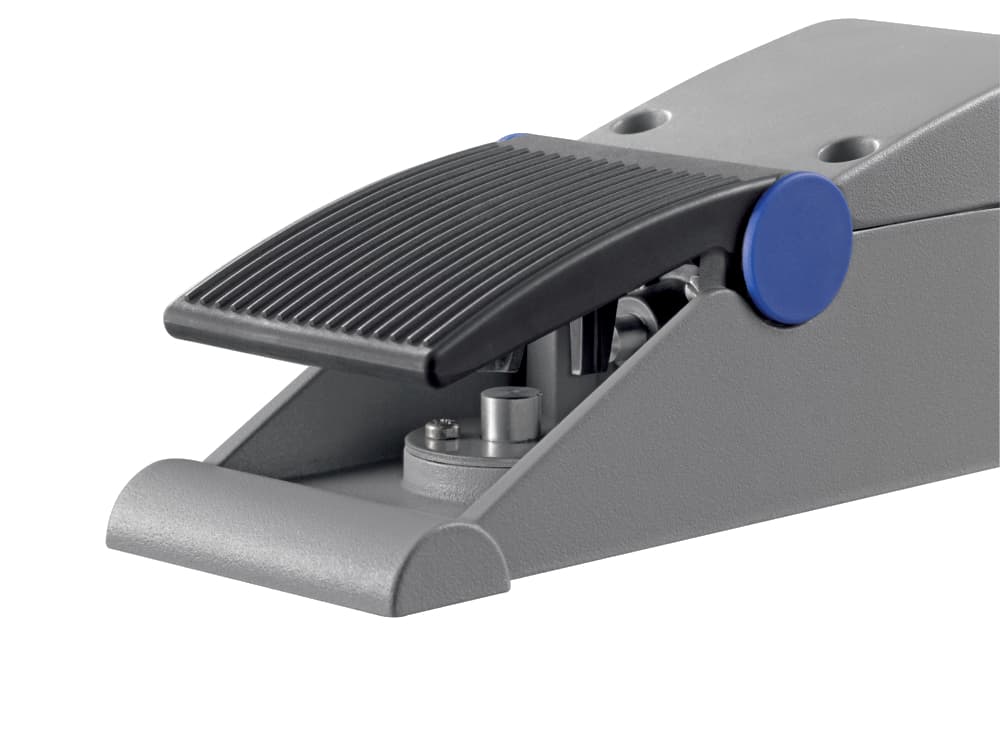

TF 232-11
