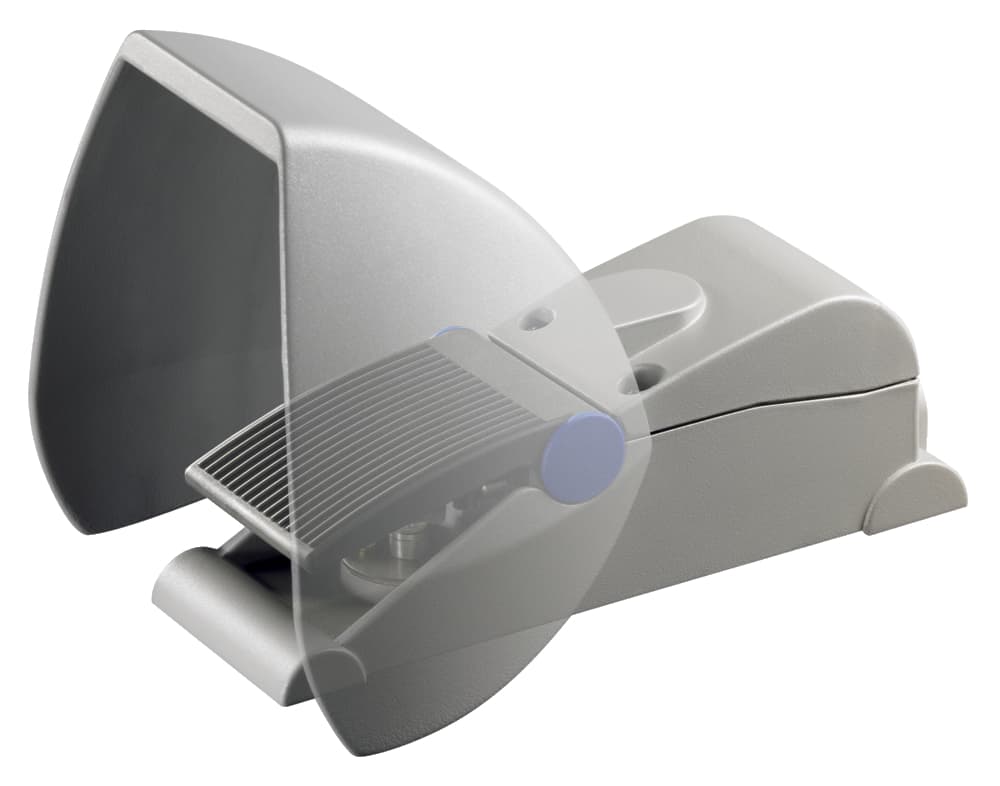

TFH232-11F Schmersal Foot Switches
Part#:TFH232-11F
Alt. Part#:151182016
Manufacturer:Schmersal
Category:Foot Switches
Product Lifecycle:Active
Product description
TFH232-11F Schmersal - Foot switch; 2 Contacts; with start/stop function; Protective shield with wide opening; Also available as safety foot switch; Low operating height of pedal; Cable entry M 20 x 1.5; High level of stability; Metal enclosure; single-pedal types
Product Details
- Enclosure coating material powder-coated
- Terminal Connector Screw connection
- Height 189 mm
- Rated insulation voltage Ui 500 V
- Protective shield Yes
- Colour of the housing RAL 9006 (White aluminum)
- Number of shutters 1
- Depth 274 mm
- Switching principle Slow action
- Standards BG-GS-ET-15, DIN VDE 0660-200, EN 60947-5-1
- Bi-stable function Yes
- Ambient temperature, minimum -25 °C
- Material of the cover Aluminium
- Probing possible Yes
- Width 170 mm
- Utilisation category AC-15 4 A
- Material of the protective shield Aluminium
- Number of openers 1
- Rated impulse withstand voltage Uimp 6 kV
- Material of the pedal Glass-fibre, reinforced thermoplastic
- Mechanical life, minimum 1,000,000 Operations
- Thermal test current 10 A
- Utilisation category DC-13 1 A
- Gross weight 1,700 g
- Cable section, maximum 1 x 2.5 mm²
- Degree of protection IP65 to EN 60529
- Enclosure material Aluminium
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Ambient temperature, maximum +70 °C
- Switching element NO contact, NC contact
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TFH232-11F on Advantage Electric Supply is $337.00. Order now.
