Z2FH 232-02/02 Schmersal Electronic Components
Part#:Z2FH 232-02/02
Alt. Part#:151181595
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description

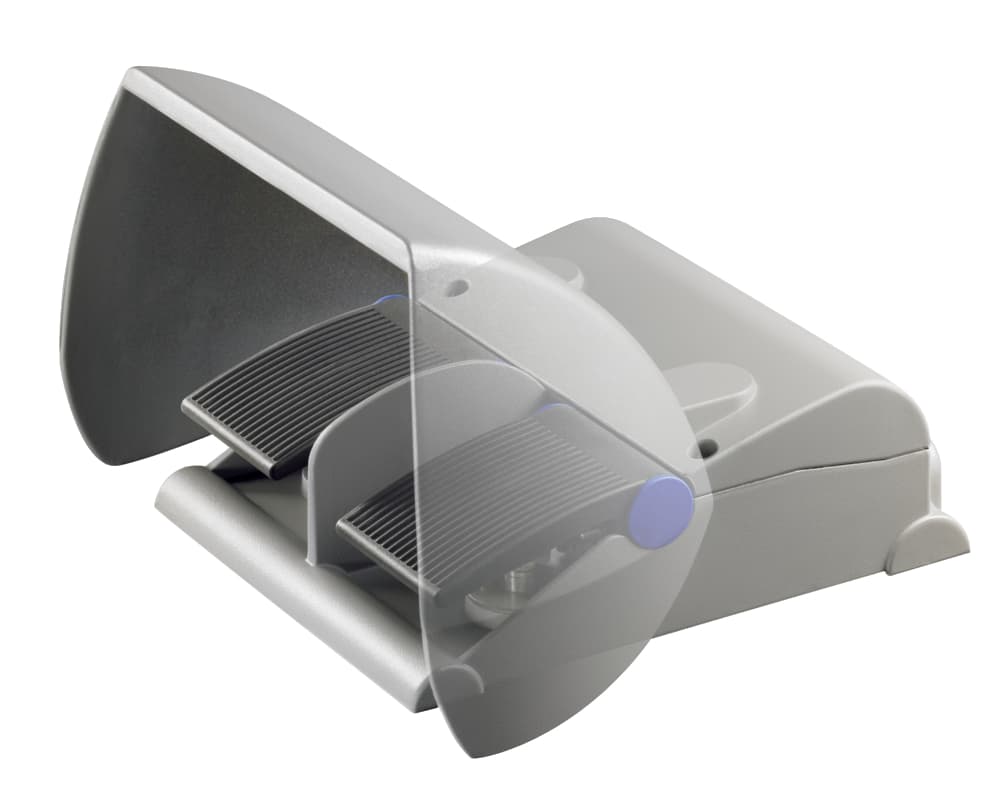

Foot switch; 2 contacts per pedal; Protective shield with wide opening; double-pedal type; Low operating height of pedal; High level of stability; Metal enclosure; 2 cable entries M 25 x 1.5
Product Details
- Switching element Opener (NC)
- Ambient temperature, minimum -25 °C
- Cable section, maximum 1 x 2.5 mm²
- Protective shield Yes
- Material of the pedal Glass-fibre, reinforced thermoplastic
- Switching principle Snap action
- Utilisation category DC-13 1 A
- Thermal test current 10 A
- Rated insulation voltage Ui 500 V
- Rated impulse withstand voltage Uimp 6 kV
- Utilisation category AC-15 230 VAC
- Ambient temperature, maximum +70 °C
- Degree of protection IP65 to EN 60529
- Width 295 mm
- Height 189 mm
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Depth 274 mm
- Mechanical life, minimum 1,000,000 Operations
- Terminal Connector Screw connection
- Number of pedals, NC 2
- Standards BG-GS-ET-15, DIN VDE 0660-200, EN 60947-5-1
- Probing possible Yes
- Enclosure material Aluminium
- Material of the protective shield Aluminium
- Enclosure coating material powder-coated
- Colour of the housing RAL 9006 (White aluminum)
- Material of the cover Aluminium
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
