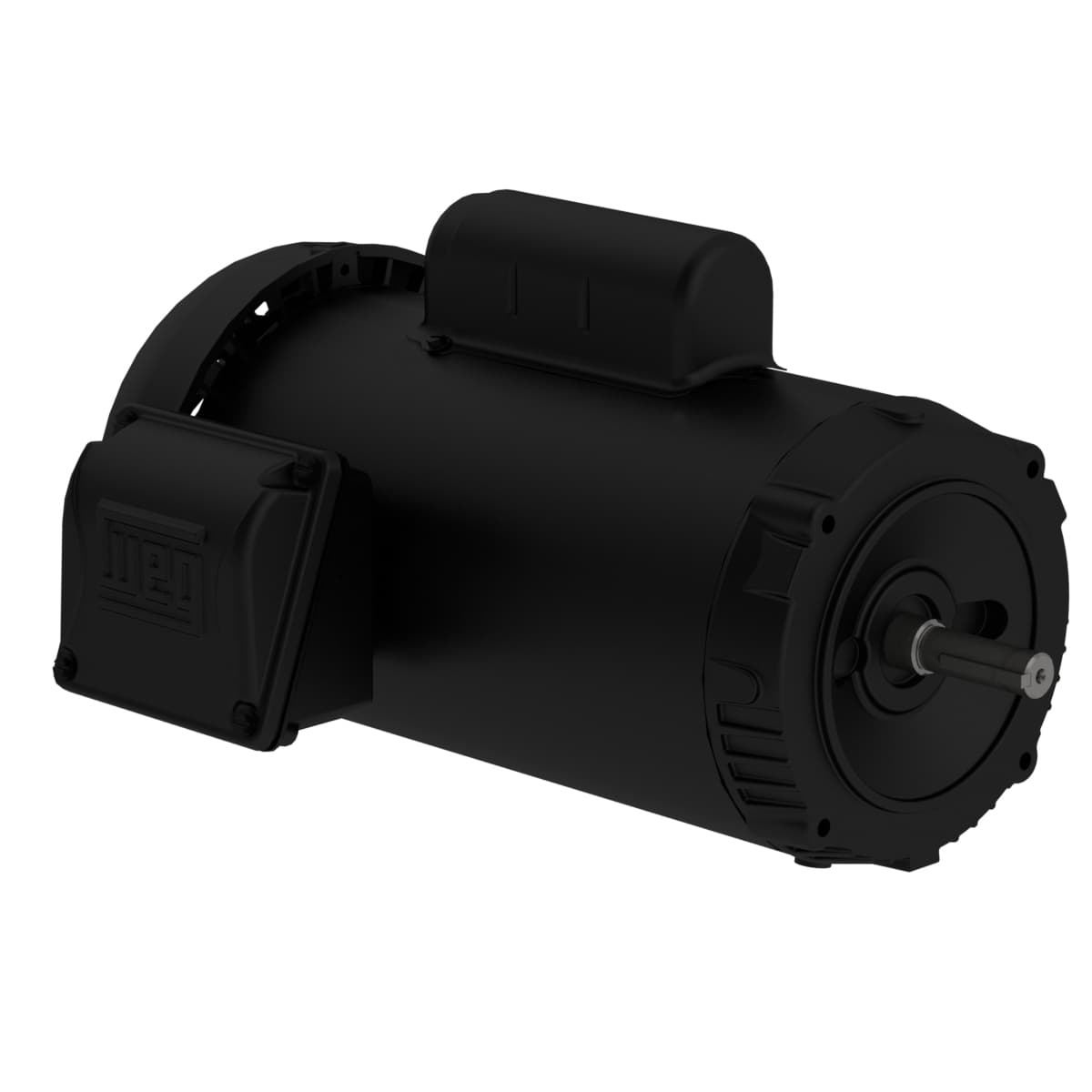

.2518ES1BW56CFL-S WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 115/208-230 V
- Output Rating 0.25 HP
- Rated Speed 1735 rpm
- Flange Type C
- Number of poles 4
- Approx. weight³ 15.8 lb
- Noise level² 52.0 dB(A)
- Synchronous speed 1800 rpm
- Terminal box¹ Left position
- Flange C
- Standard NEMA MG-1
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Enclosure IC411 - TEFC
- Voltage 115/208-230 V
- Output rating 0.25 HP
- Degree of Protection IP55
- Rotation¹ Both (CW and CCW)
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Service factor 1.15 (1.00 @ 208V)
- Insulation Class F
- Design N
- Moment of inertia (J) 0.0318 sq.ft.lb
- Temperature rise 80 K
- Breakdown torque 280 %
- Locked rotor torque 310 %
- Frame W56C
- Locked rotor time 27s (cold) 15s (hot)
- Number of Poles 4
- Rated torque 0.757 ft.lb
- LRC 5.3x(Code N)
- Frequency 60 Hz
- Rated voltage 115/208-230 V
- No load current 4.00/1.72-2.00 A
- Rated speed 1735 rpm
- Slip 3.61 %
- L. R. Amperes 24.4/13.5-12.2 A
- Output 0.25 HP (0.18 kW)
- Rated current 4.60/2.54-2.30 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
