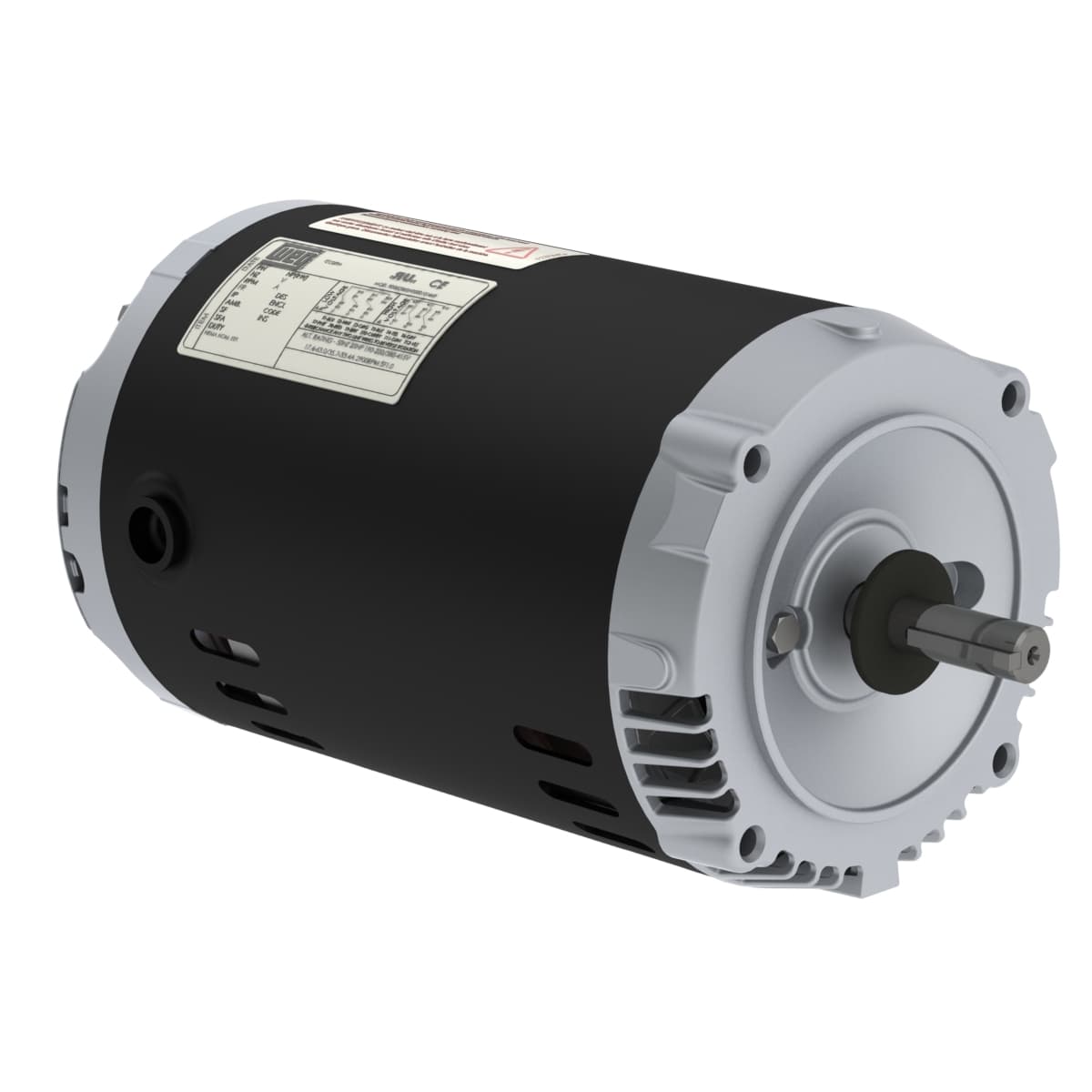

.5036ES3EJPR56C-S WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 208-230/460 V
- Output Rating 0.5 HP
- Rated Speed 3500 rpm
- Flange Type C
- Frame 56C
- Ambient temperature -20°C to +40°C
- Output rating 0.5 HP
- Output 0.5 HP (0.37 kW)
- Moment of inertia (J) 0.0453 sq.ft.lb
- Standard NEMA MG-1
- Rated voltage 208-230/460 V
- Breakdown torque 300 %
- Degree of Protection IP55
- Number of poles 2
- Number of Poles 2
- No load current 0.776-0.900/0.450 A
- Rotation¹ CCW
- Slip 2.78 %
- Service factor 1.15 (1.00 @ 208V)
- Voltage 208-230/460//190-220/380-415 V
- LRC 7.0x(Code L)
- Starting Method Direct On Line
- Terminal box¹ Left position
- Rated current 1.86-1.69/0.843 A
- Duty Cycle Cont.(S1)
- Approx. weight³ 19.2 lb
- L. R. Amperes 13.0-11.8/5.90 A
- Locked rotor torque 260 %
- Temperature rise 80 K
- Mounting F-1
- Flange C
- Frequency 60 Hz
- Locked rotor time 63s (cold) 35s (hot)
- Altitude 1000 m.a.s.l.
- Noise level² 68.0 dB(A)
- Synchronous speed 3600 rpm
- Rated speed 3500 rpm
- Rated torque 0.750 ft.lb
- Insulation Class F
- Enclosure IC411 - TEFC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
.5036ES3EJPR56C-S Related Documents
Manufacturer warranty
.5036ES3EJPR56C-S WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.
Rolled Steel Jet Pump - C type Standard Efficiency 0.5 HP 2P 56C 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
