00136ES1B56-S WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 115/208-230 V
- Output Rating 1 HP
- Rated Speed 3500 rpm
- Flange Type Without
- LRC 8.4x(Code L)
- Starting Method Direct On Line
- Terminal box¹ Left position
- Rated voltage 115/208-230 V
- Breakdown torque 280 %
- Rotation¹ Both (CW and CCW)
- Slip 2.78 %
- Rated torque 1.50 ft.lb
- Design N
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- L. R. Amperes 85.0/47.4-42.5 A
- Locked rotor torque 280 %
- Duty Cycle Cont.(S1)
- Voltage 115/208-230 V
- Rated current 10.1/5.64-5.06 A
- No load current 5.50/2.37-2.75 A
- Degree of Protection IP55
- Flange Without
- Output 1 HP (0.75 kW)
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Number of poles 2
- Frame 56
- Insulation Class F
- Standard NEMA MG-1
- Frequency 60 Hz
- Locked rotor time 14s (cold) 8s (hot)
- Mounting F-1
- Output rating 1 HP
- Number of Poles 2
- Ambient temperature -20°C to +40°C
- Service factor 1.15 (1.00 @ 208V)
- Noise level² 68.0 dB(A)
- Rated speed 3500 rpm
- Moment of inertia (J) 0.0472 sq.ft.lb
- Approx. weight³ 28.8 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
00136ES1B56-S Related Documents
Manufacturer warranty
00136ES1B56-S WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

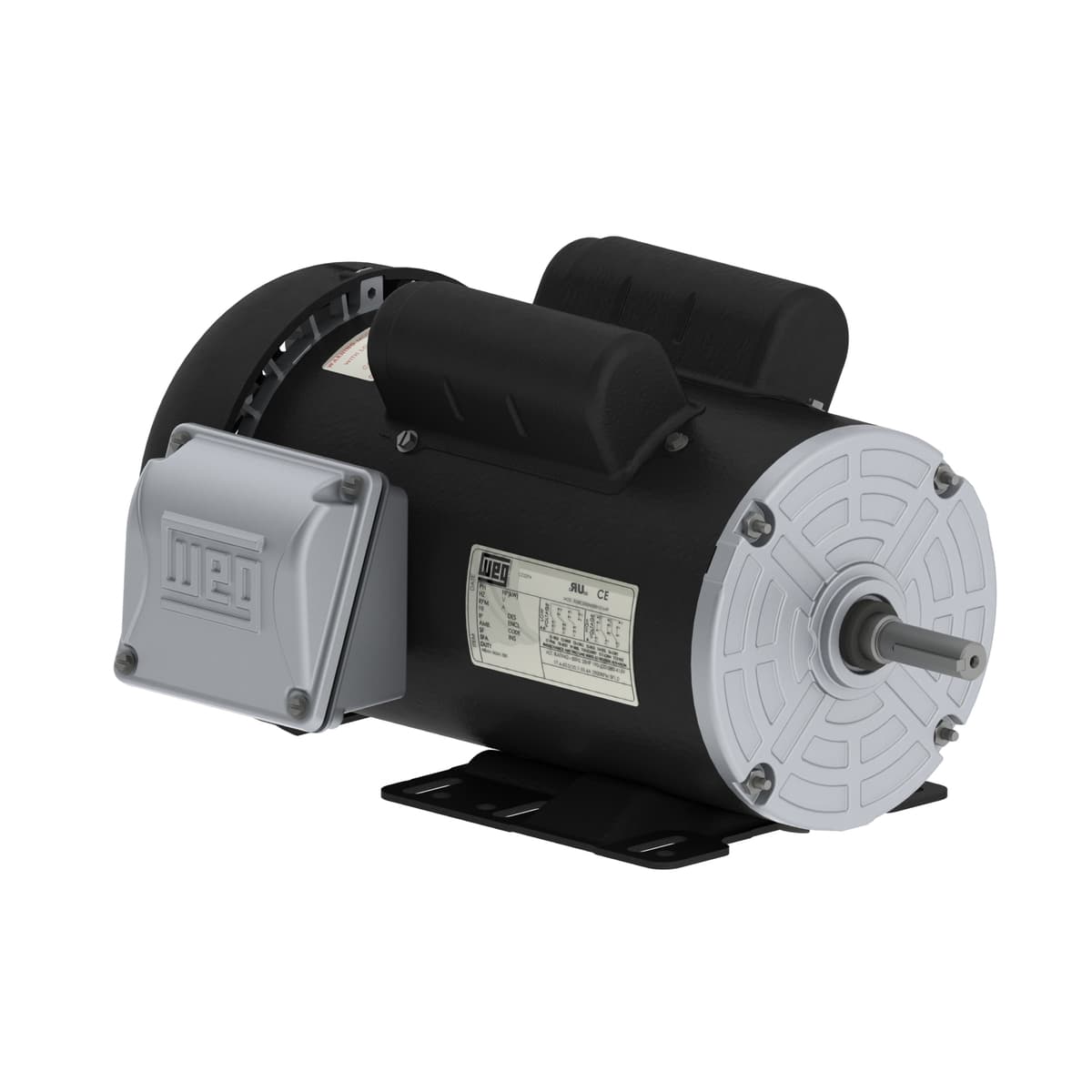

Rolled Steel 1 HP 2P 56 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted
