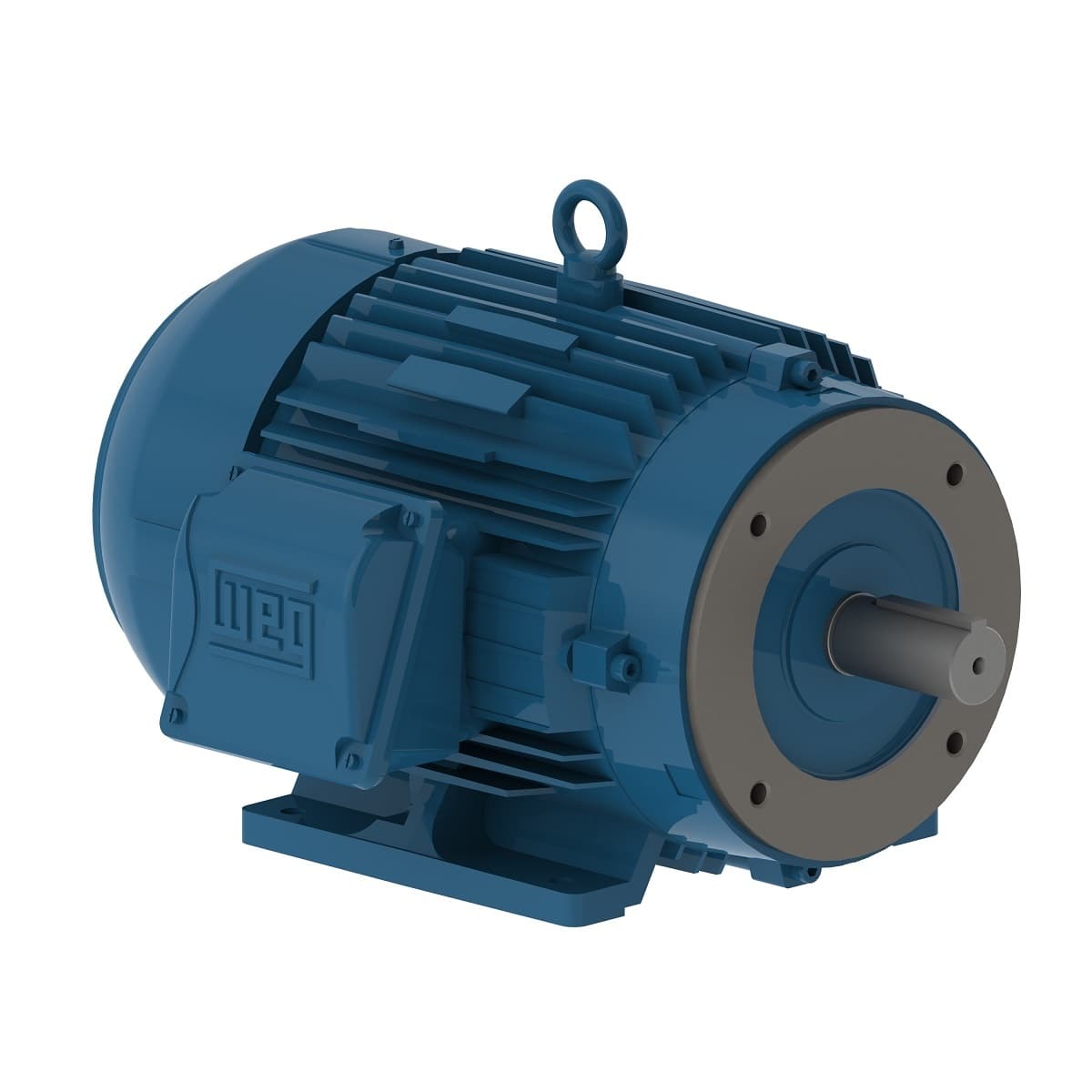

00318ET3E182TC-W22 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 230/460 V
- Output Rating 3 HP
- Rated Speed 1760 rpm
- Flange Type C
- L. R. Amperes 63.3/31.7 A
- Design B
- Locked rotor torque 220 %
- Insulation Class F
- Terminal box¹ Left position
- LRC 8.1x(Code K)
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Frequency 60 Hz
- Breakdown torque 330 %
- Number of poles 4
- Rated voltage 230/460 V
- Moment of inertia (J) 0.3401 sq.ft.lb
- Duty Cycle Cont.(S1)
- Noise level² 56.0 dB(A)
- Slip 2.22 %
- Temperature rise 80 K
- Mounting F-1
- Flange C
- Rated current 7.82/3.91 A
- Locked rotor time 41s (cold) 23s (hot)
- Altitude 1000 m.a.s.l.
- Voltage 230/460//380 V
- Number of Poles 4
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
- Rated speed 1760 rpm
- Rated torque 8.95 ft.lb
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- Output 3 HP (2.2 kW)
- No load current 4.00/2.00 A
- Starting Method Direct On Line
- Output rating 3 HP
- Frame 182/4TC
- Degree of Protection IP55
- Approx. weight³ 90.5 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
