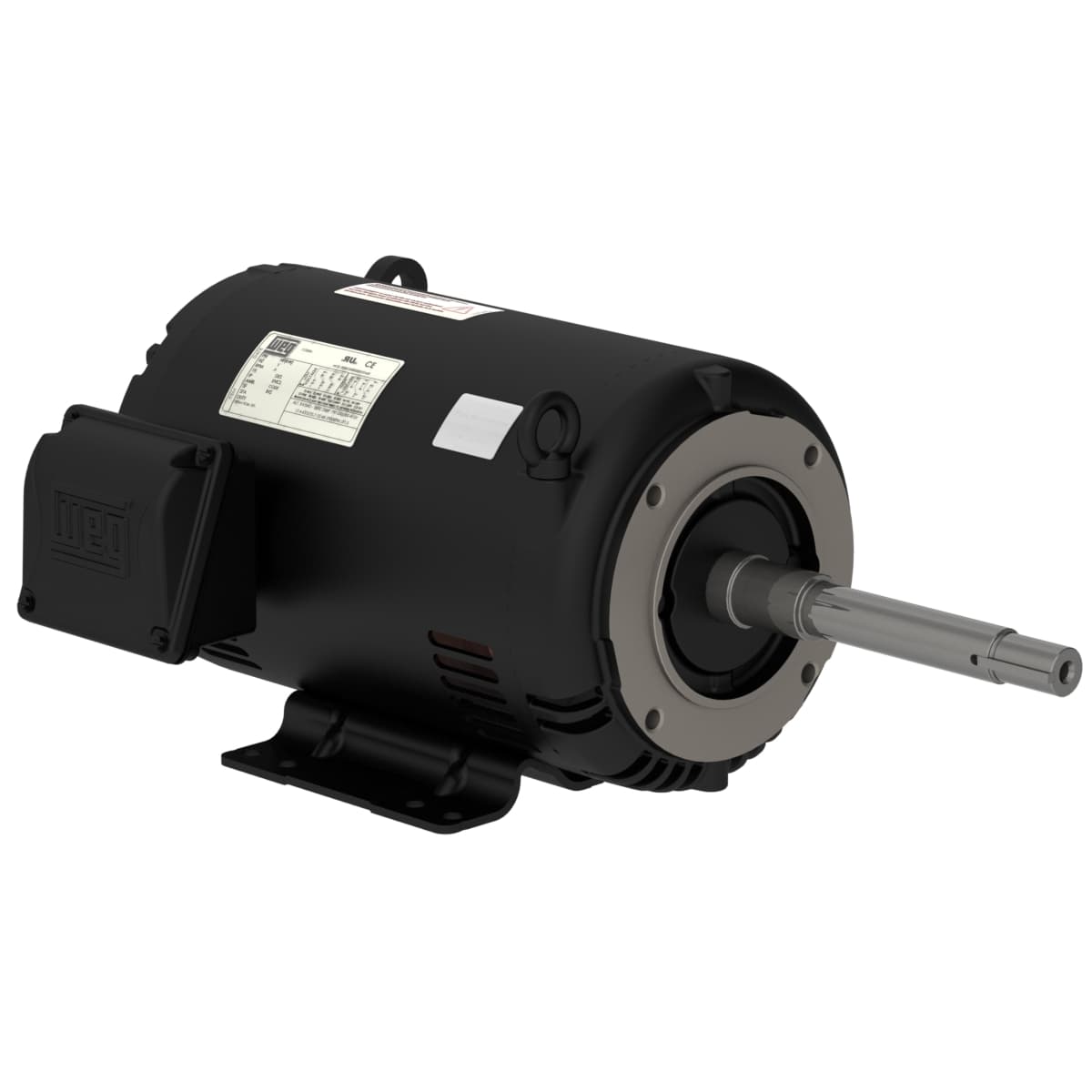

00518OT3E184JP-SG WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 230/460 V
- Output Rating 5 HP
- Rated Speed 1760 rpm
- Flange Type C
- Terminal box¹ Left position
- Flange C
- Noise level² 55.0 dB(A)
- Synchronous speed 1800 rpm
- Voltage 230/460//190-220/380-415 V
- Number of poles 4
- Output rating 5 HP
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 87.9 lb
- Standard NEMA MG-1
- Mounting F-1
- Enclosure IC01 - ODP
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Temperature rise 80 K
- Service factor 1.15
- LRC 7.2x(Code J)
- Moment of inertia (J) 0.4003 sq.ft.lb
- Design B
- Insulation Class F
- Rated current 12.7/6.33 A
- Locked rotor time 21s (cold) 12s (hot)
- L. R. Amperes 91.2/45.6 A
- Breakdown torque 310 %
- Locked rotor torque 200 %
- Rated torque 14.9 ft.lb
- No load current 6.29/3.15 A
- Rated voltage 230/460 V
- Rated speed 1760 rpm
- Frequency 60 Hz
- Slip 2.22 %
- Number of Poles 4
- Frame 182/4JP
- Output 5 HP (3.7 kW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
