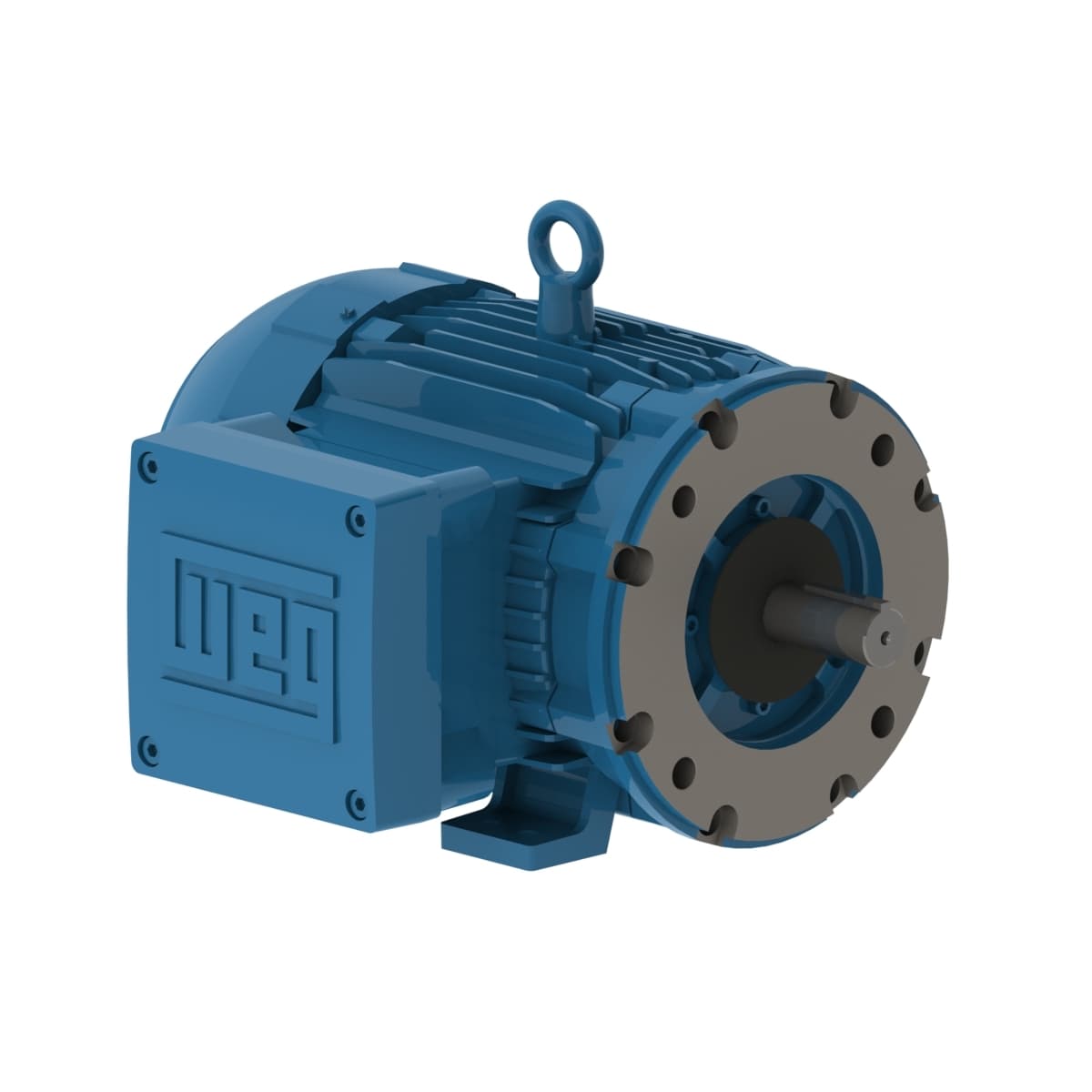

00536XT3H184TC WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 575 V
- Output Rating 5 HP
- Rated Speed 3490 rpm
- Flange Type C
- Terminal box¹ Left position
- Output rating 5 HP
- Flange C
- Synchronous speed 3600 rpm
- Approx. weight³ 133 lb
- Voltage 575 V
- Standard NEMA MG-1
- Mounting F-1
- Enclosure IC411 - TEFC
- Altitude 1000 m.a.s.l.
- Noise level² 69.0 dB(A)
- Number of poles 2
- Rotation¹ Both (CW and CCW)
- Degree of Protection IP55
- Duty Cycle Cont.(S1)
- Service factor 1.15
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Temperature rise 80 K
- Moment of inertia (J) 0.1889 sq.ft.lb
- Design B
- Insulation Class F
- Breakdown torque 380 %
- L. R. Amperes 36.6 A
- Rated torque 7.52 ft.lb
- Locked rotor time 46s (cold) 26s (hot)
- LRC 7.5x(Code J)
- Locked rotor torque 250 %
- No load current 1.76 A
- Rated current 4.88 A
- Rated speed 3490 rpm
- Rated voltage 575 V
- Frequency 60 Hz
- Slip 3.06 %
- Frame 182/4TC
- Number of Poles 2
- Output 5 HP (3.7 kW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
