00718ET3E213T-S WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 230/460 V
- Output Rating 7.5 HP
- Rated Speed 1770 rpm
- Flange Type Without
- Frame 213/5T
- Design B
- Noise level² 60.0 dB(A)
- Rated voltage 230/460 V
- Moment of inertia (J) 0.9380 sq.ft.lb
- Duty Cycle Cont.(S1)
- Output rating 7.5 HP
- Frequency 60 Hz
- Locked rotor time 32s (cold) 18s (hot)
- Altitude 1000 m.a.s.l.
- Voltage 230/460//190-220/380-415 V
- Breakdown torque 300 %
- Degree of Protection IP55
- Synchronous speed 1800 rpm
- No load current 8.81/4.41 A
- Ambient temperature -20°C to +40°C
- Flange Without
- Rated speed 1770 rpm
- LRC 7.3x(Code J)
- Temperature rise 80 K
- Mounting F-1
- Terminal box¹ Left position
- Slip 1.67 %
- Rated torque 22.3 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rated current 18.4/9.18 A
- L. R. Amperes 134/67.0 A
- Enclosure IC411 - TEFC
- Number of poles 4
- Output 7.5 HP (5.5 kW)
- Insulation Class F
- Approx. weight³ 117 lb
- Number of Poles 4
- Locked rotor torque 260 %
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
00718ET3E213T-S Related Documents
Manufacturer warranty
00718ET3E213T-S WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

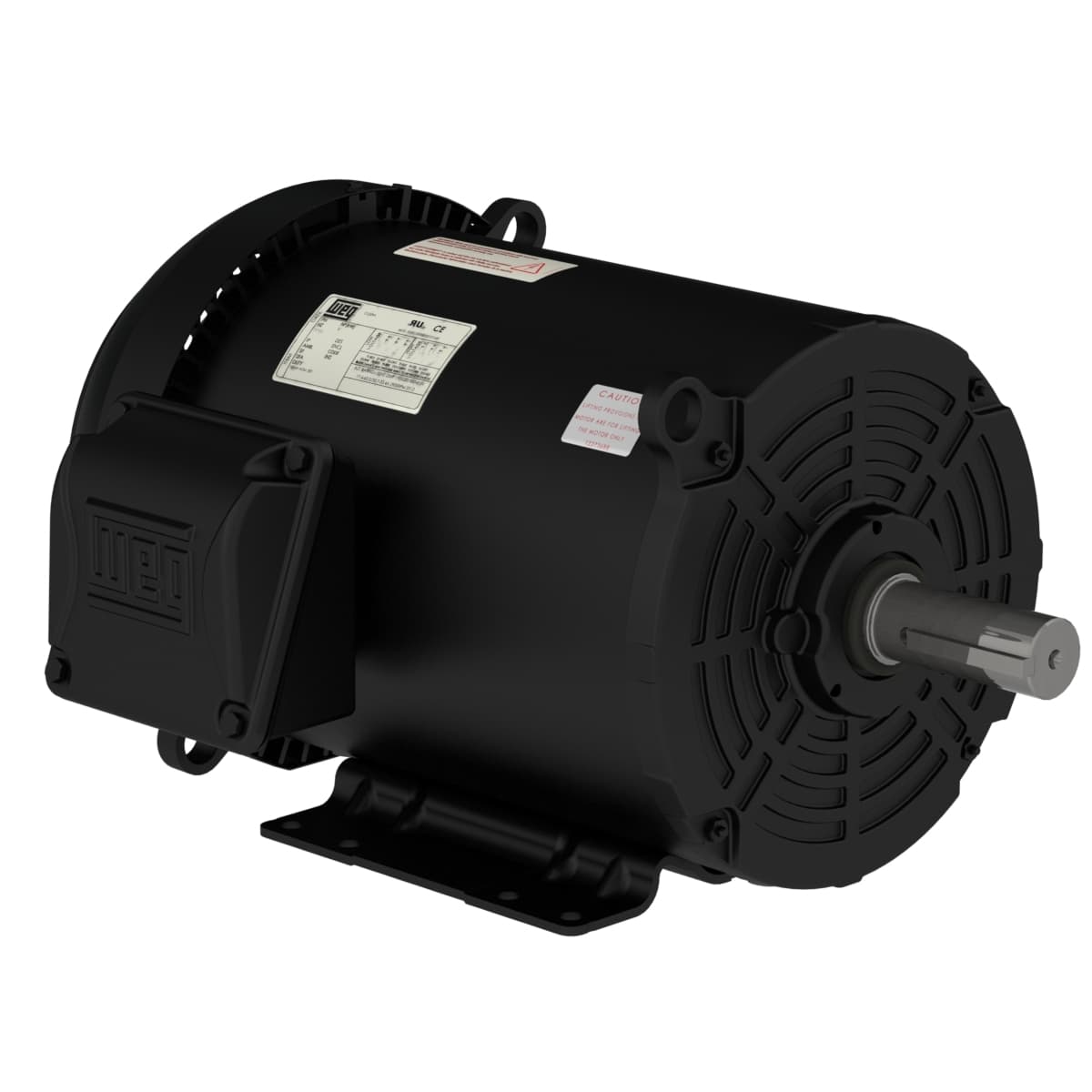

Rolled Steel NEMA Premium Efficiency 7.5 HP 4P 213/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
