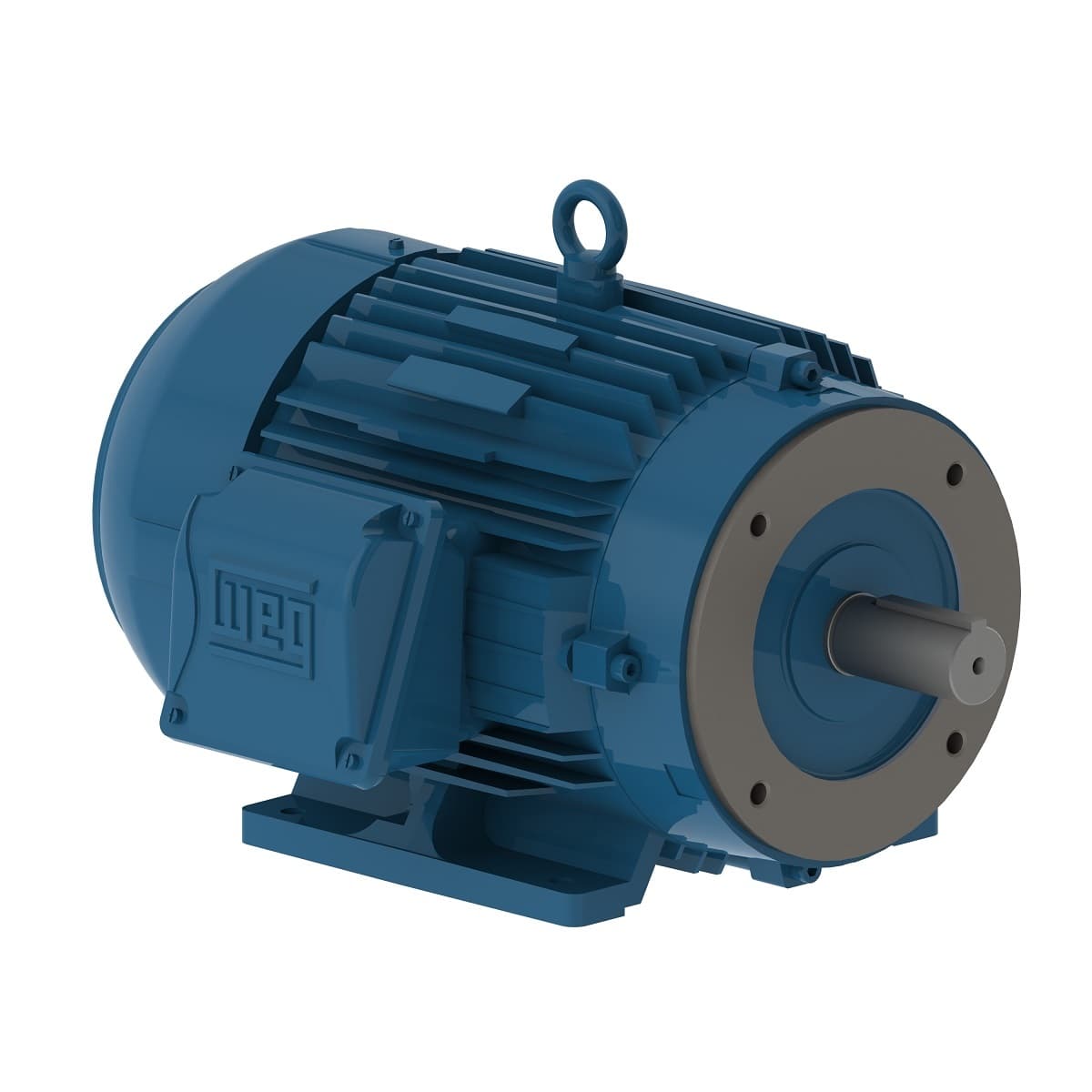

00718ET3H213TC-W22 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 575 V
- Output Rating 7.5 HP
- Rated Speed 1765 rpm
- Flange Type C
- Terminal box¹ Left position
- Flange C
- Output rating 7.5 HP
- Voltage 575 V
- Synchronous speed 1800 rpm
- Number of poles 4
- Approx. weight³ 169 lb
- Standard NEMA MG-1
- Noise level² 58.0 dB(A)
- Rotation¹ Both (CW and CCW)
- Mounting F-1
- Enclosure IC411 - TEFC
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Degree of Protection IP55
- Starting Method Direct On Line
- Duty Cycle Cont.(S1)
- Service factor 1.25
- Temperature rise 80 K
- Moment of inertia (J) 1.34 sq.ft.lb
- Insulation Class F
- Design B
- Locked rotor time 36s (cold) 20s (hot)
- Rated torque 22.3 ft.lb
- Breakdown torque 310 %
- No load current 3.36 A
- Locked rotor torque 220 %
- LRC 7.1x(Code H)
- Rated current 7.34 A
- Frame 213/5TC
- Rated speed 1765 rpm
- Rated voltage 575 V
- Output 7.5 HP (5.5 kW)
- Frequency 60 Hz
- Number of Poles 4
- Slip 1.94 %
- L. R. Amperes 52.1 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
