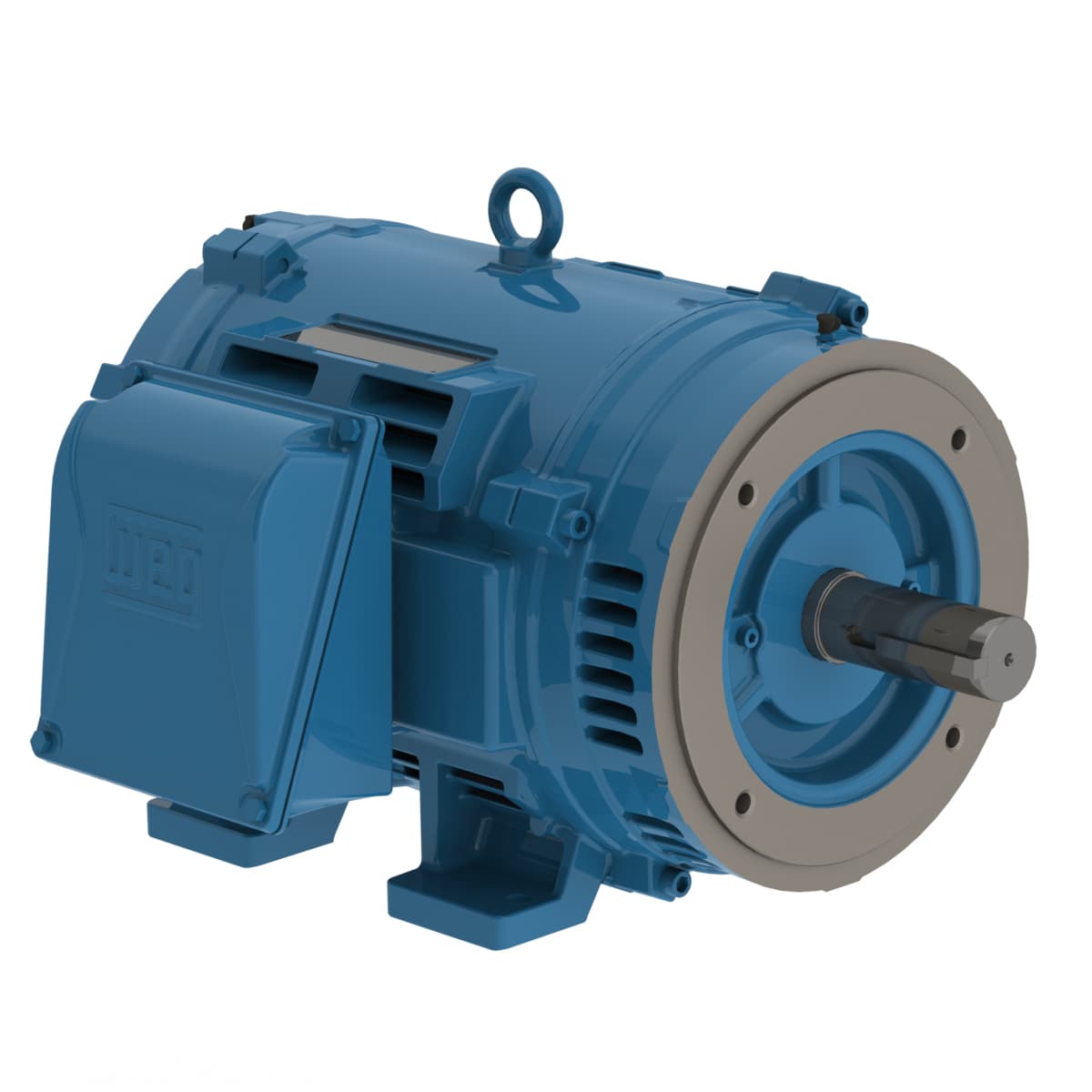

02012OT3H286TC-W40 WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 575 V
- Output Rating 20 HP
- Rated Speed 1175 rpm
- Flange Type C
- Terminal box¹ Left position
- Flange C
- Synchronous speed 1200 rpm
- Output rating 20 HP
- Number of poles 6
- Voltage 575 V
- Standard NEMA MG-1
- Approx. weight³ 391 lb
- Degree of Protection IP23
- Mounting F-1
- Noise level² 59.0 dB(A)
- Rotation¹ Both (CW and CCW)
- Enclosure IC01 - ODP
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Insulation Class F
- Breakdown torque 260 %
- Locked rotor torque 229 %
- Service factor 1.25
- Design B
- Moment of inertia (J) 6.89 sq.ft.lb
- Locked rotor time 27s (cold) 15s (hot)
- No load current 7.20 A
- Rated torque 89.4 ft.lb
- LRC 6.4x(Code G)
- Frequency 60 Hz
- Frame 284/6TC
- Rated current 19.4 A
- Rated voltage 575 V
- Slip 2.08 %
- Output 20 HP (15 kW)
- L. R. Amperes 124 A
- Number of Poles 6
- Rated speed 1175 rpm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
