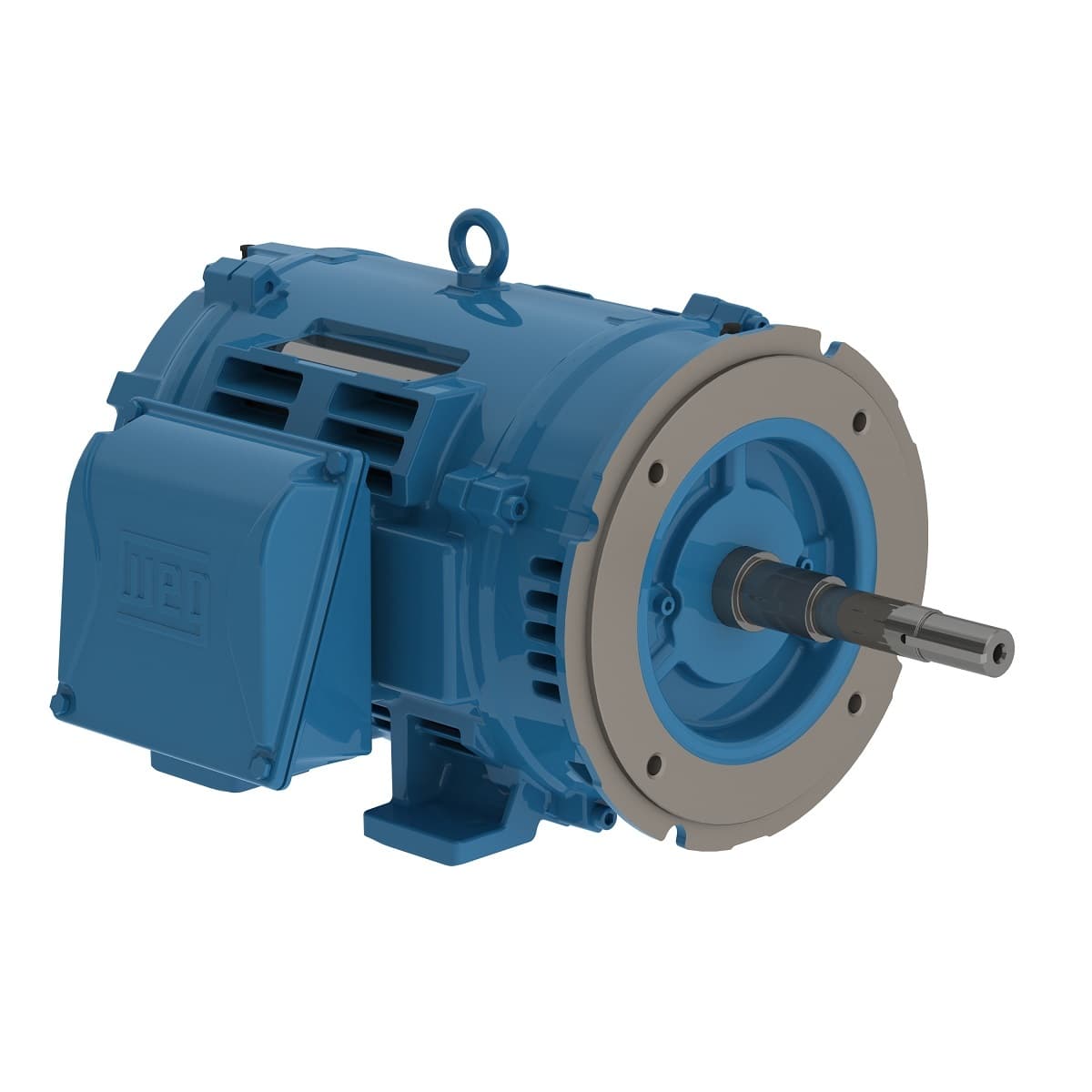

03018OT3V286JP-W40 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 200/400 V
- Output Rating 30 HP
- Rated Speed 1770 rpm
- Flange Type C
- Terminal box¹ Left position
- Synchronous speed 1800 rpm
- Output rating 30 HP
- Flange C
- Voltage 200/400 V
- Number of poles 4
- Mounting F-1
- Standard NEMA MG-1
- Rotation¹ Both (CW and CCW)
- Enclosure IC01 - ODP
- Approx. weight³ 412 lb
- Noise level² 64.0 dB(A)
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Temperature rise 80 K
- LRC 6.6x(Code G)
- Locked rotor time 32s (cold) 18s (hot)
- Moment of inertia (J) 4.52 sq.ft.lb
- Design B
- Rated torque 89.0 ft.lb
- No load current 27.8/13.9 A
- Locked rotor torque 240 %
- Service factor 1.25
- Insulation Class F
- Breakdown torque 270 %
- Number of Poles 4
- Slip 1.67 %
- Output 30 HP (22 kW)
- Rated voltage 200/400 V
- Rated speed 1770 rpm
- L. R. Amperes 530/265 A
- Frame 284/6JP
- Rated current 80.3/40.1 A
- Frequency 60 Hz
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
