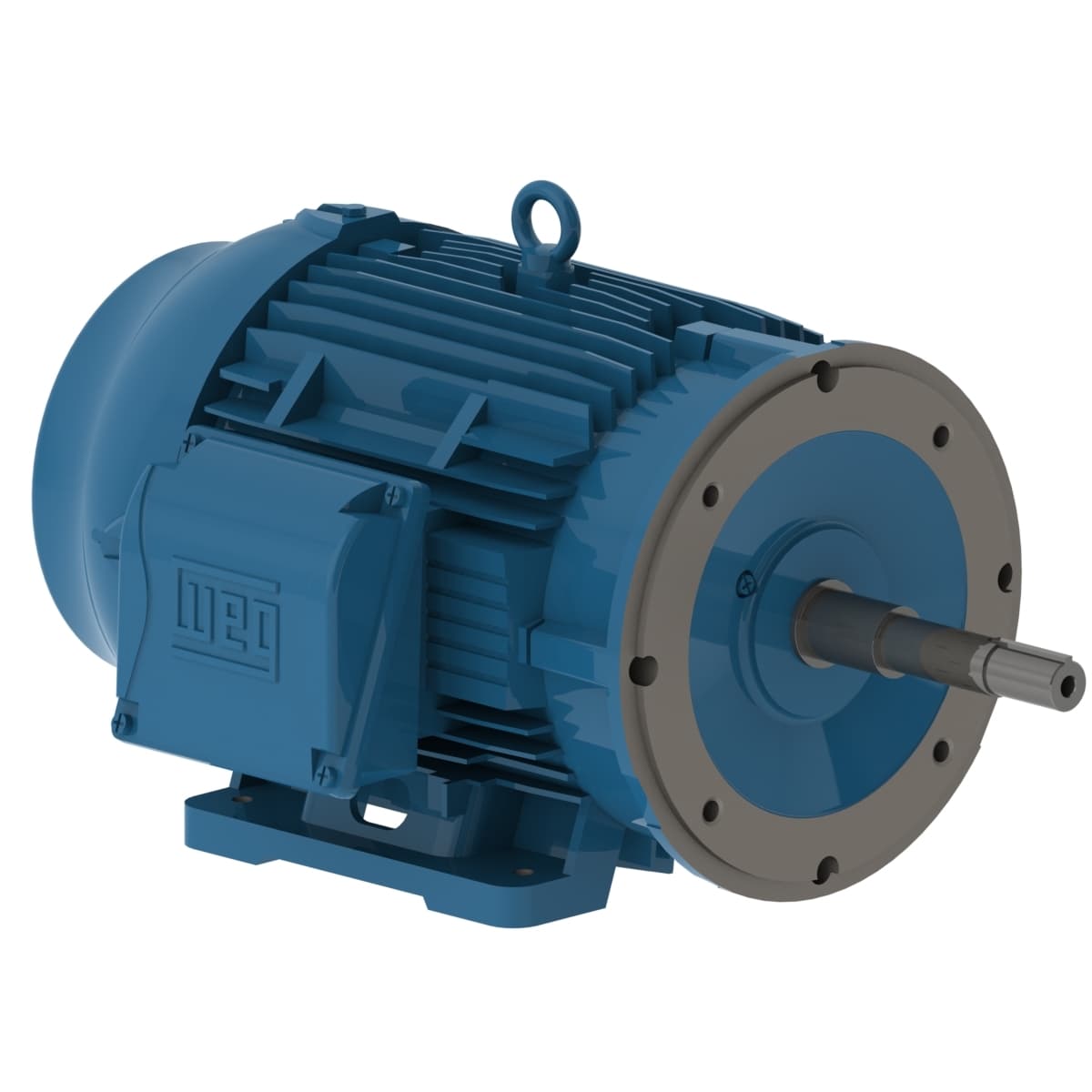

05036ET3E326JP-W22 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 230/460 V
- Output Rating 50 HP
- Rated Speed 3560 rpm
- Flange Type C
- Terminal box¹ Left position
- Output rating 50 HP
- Flange C
- Mounting F-1
- Number of poles 2
- Synchronous speed 3600 rpm
- Voltage 230/460//380 V
- Standard NEMA MG-1
- Ambient temperature -20°C to +40°C
- Degree of Protection IP55
- Noise level² 76.0 dB(A)
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 561 lb
- Starting Method Direct On Line
- Enclosure IC411 - TEFC
- Altitude 1000 m.a.s.l.
- Duty Cycle Cont.(S1)
- Insulation Class F
- Design B
- Service factor 1.25
- Temperature rise 80 K
- Moment of inertia (J) 5.75 sq.ft.lb
- Breakdown torque 240 %
- Locked rotor time 36s (cold) 20s (hot)
- Frequency 60 Hz
- Rated torque 73.8 ft.lb
- Locked rotor torque 240 %
- LRC 6.3x(Code G)
- L. R. Amperes 707/353 A
- No load current 28.0/14.0 A
- Rated voltage 230/460 V
- Slip 1.11 %
- Rated current 112/56.1 A
- Rated speed 3560 rpm
- Number of Poles 2
- Frame 324/6JP
- Output 50 HP (37 kW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
