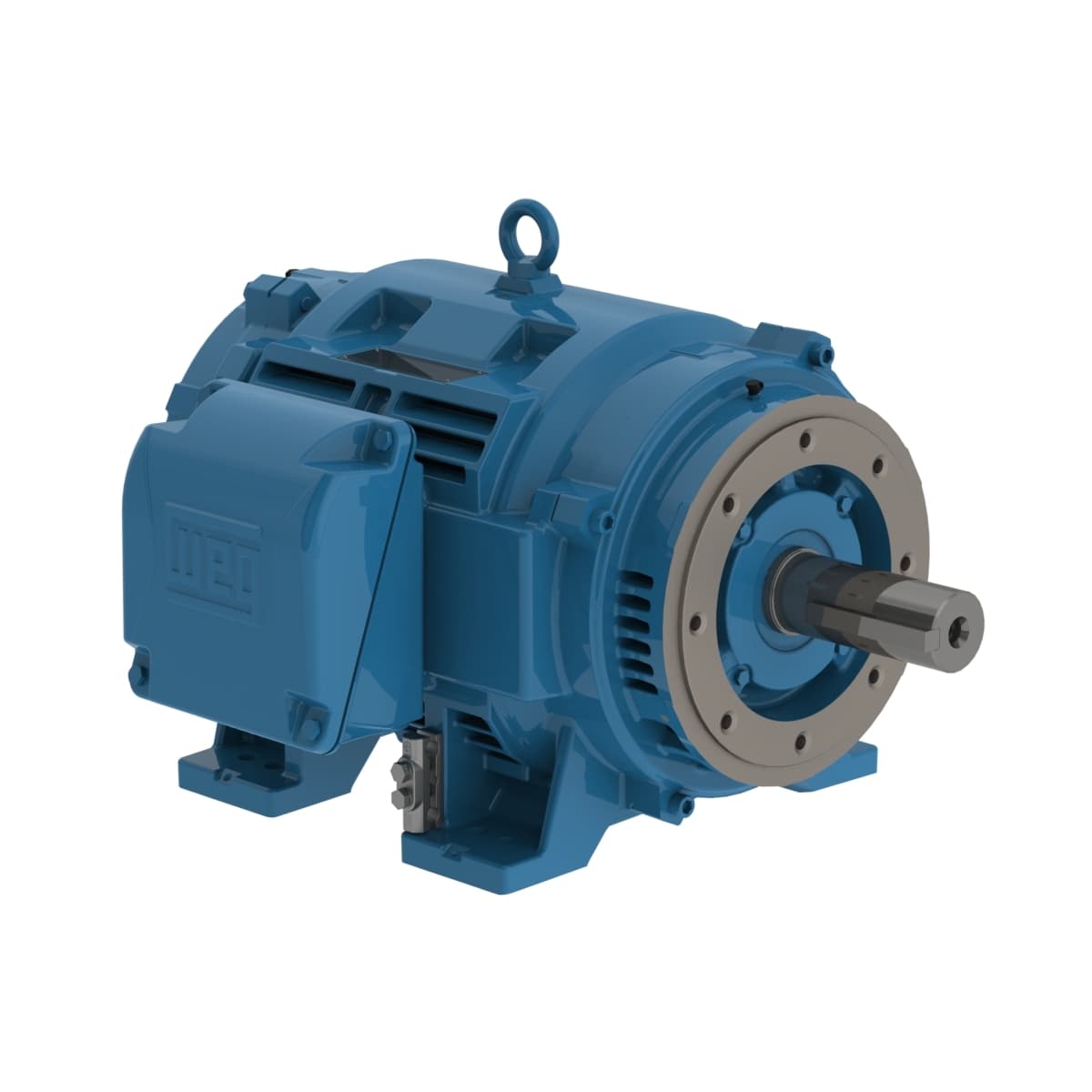

07518OT3H365TC-W40 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 575 V
- Output Rating 75 HP
- Rated Speed 1780 rpm
- Flange Type C
- Terminal box¹ Left position
- Flange C
- Standard NEMA MG-1
- Output rating 75 HP
- Number of poles 4
- Synchronous speed 1800 rpm
- Voltage 575 V
- Mounting F-1
- Noise level² 69.0 dB(A)
- Approx. weight³ 802 lb
- Rotation¹ Both (CW and CCW)
- Enclosure IC01 - ODP
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Starting Method Direct On Line
- Duty Cycle Cont.(S1)
- Degree of Protection IP23
- Temperature rise 80 K
- Service factor 1.25
- Design B
- Moment of inertia (J) 16.8 sq.ft.lb
- Insulation Class F
- Locked rotor time 25s (cold) 14s (hot)
- Breakdown torque 260 %
- LRC 6.8x(Code G)
- Locked rotor torque 220 %
- Rated torque 221 ft.lb
- Output 75 HP (55 kW)
- No load current 24.4 A
- L. R. Amperes 465 A
- Rated current 68.4 A
- Frequency 60 Hz
- Slip 1.11 %
- Number of Poles 4
- Rated speed 1780 rpm
- Rated voltage 575 V
- Frame 364/5TC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
