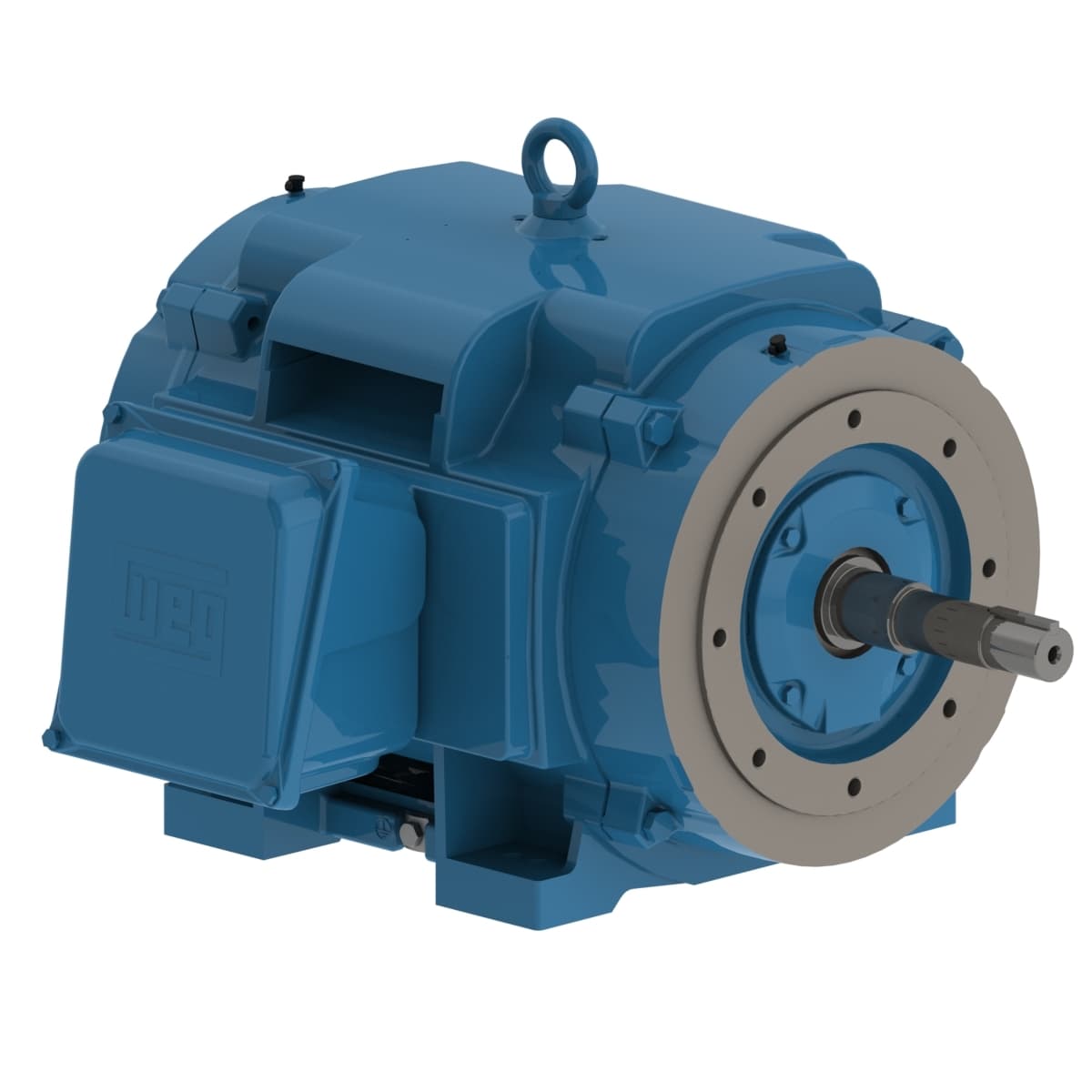

10018OT3E404JP WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 230/460 V
- Output Rating 100 HP
- Rated Speed 1780 rpm
- Flange Type C
- Slip 1.11 %
- No load current 84.0/42.0 A
- Altitude 1000 m.a.s.l.
- Voltage 230/460 V
- Output 100 HP (75 kW)
- Design B
- Temperature rise 80 K
- Output rating 100 HP
- Number of Poles 4
- Locked rotor torque 229 %
- Noise level² 69.0 dB(A)
- Terminal box¹ Left position
- Frequency 60 Hz
- Moment of inertia (J) 22.8 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Rated voltage 230/460 V
- Breakdown torque 270 %
- Starting Method Direct On Line
- Rated speed 1780 rpm
- Locked rotor time 18s (cold) 10s (hot)
- Duty Cycle Cont.(S1)
- Flange C
- Rated current 226/113 A
- Enclosure IC01 - ODP
- Degree of Protection IP23
- L. R. Amperes 1514/757 A
- Rated torque 295 ft.lb
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 996 lb
- LRC 6.7x(Code G)
- Service factor 1.15
- Standard NEMA MG-1
- Frame 404/5JP
- Insulation Class F
- Mounting F-1
- Synchronous speed 1800 rpm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
