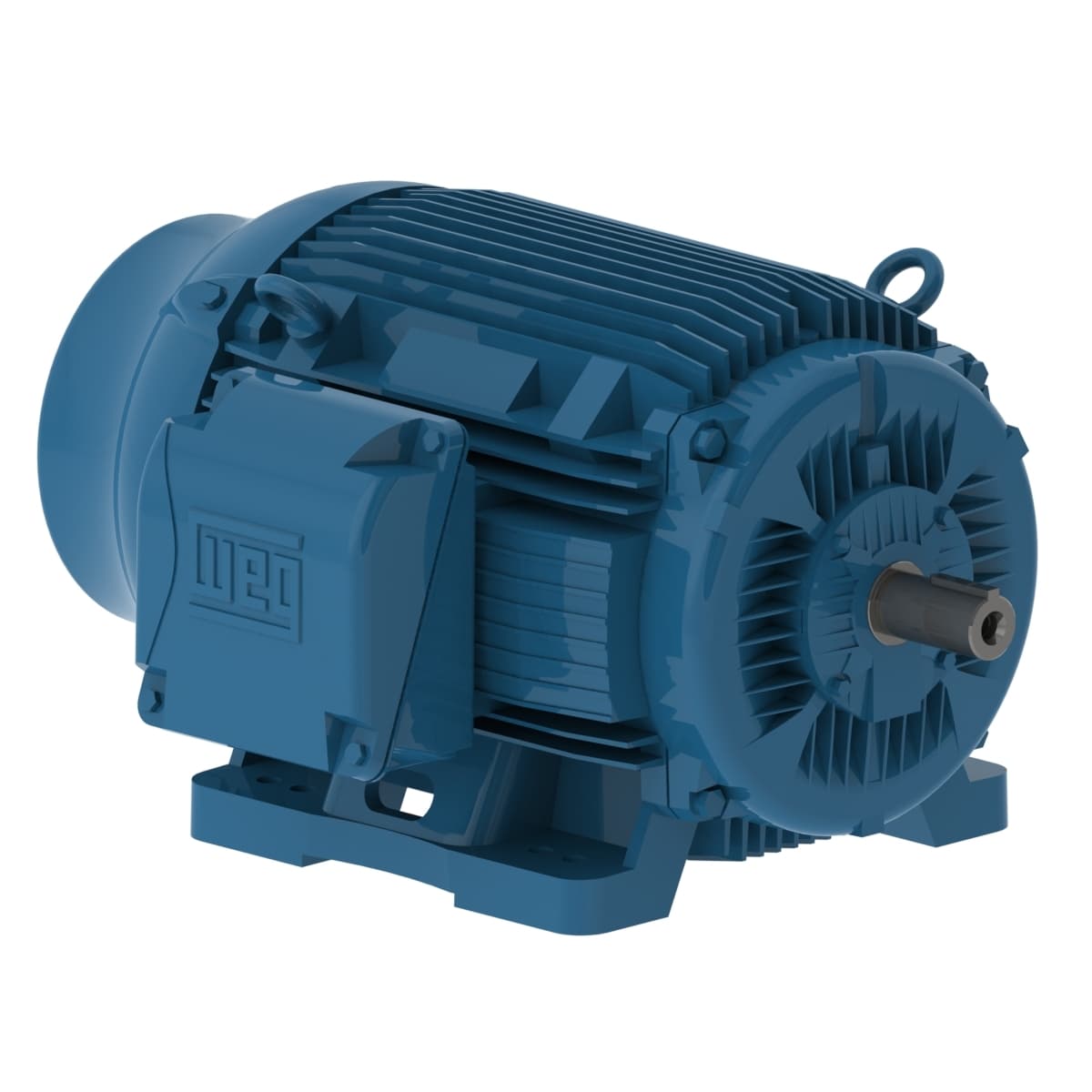

12515EP3OFP444TS-W22 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 380 V
- Output Rating 125 HP
- Rated Speed 1480 rpm
- Flange Type Without
- Rated voltage 380 V
- Insulation Class F
- Noise level² 70.0 dB(A)
- Slip 1.33 %
- Locked rotor time 36s (cold) 20s (hot)
- Rotation¹ Both (CW and CCW)
- Output rating 125 HP
- Number of Poles 4
- Breakdown torque 240 %
- Degree of Protection IP55
- Voltage 380-400-415 V
- Output 125 HP
- Locked rotor torque 180 %
- Enclosure IC411 - TEFC
- Flange Without
- Rated current 169 A
- Design B
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Frequency 50 Hz
- No load current 53.5 A
- Starting Method Direct On Line
- Number of poles 4
- Terminal box¹ Left position
- Frame 444/5TS
- Moment of inertia (J) 44.1 sq.ft.lb
- Mounting F-1
- Service factor 1.15
- Duty Cycle Cont.(S1)
- Rated speed 1480 rpm
- Rated torque 444 ft.lb
- Ambient temperature -20°C to +40°C
- Synchronous speed 1500 rpm
- L. R. Amperes 980 A
- LRC 5.8x(Code F)
- Temperature rise 80 K
- Approx. weight³ 1557 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
