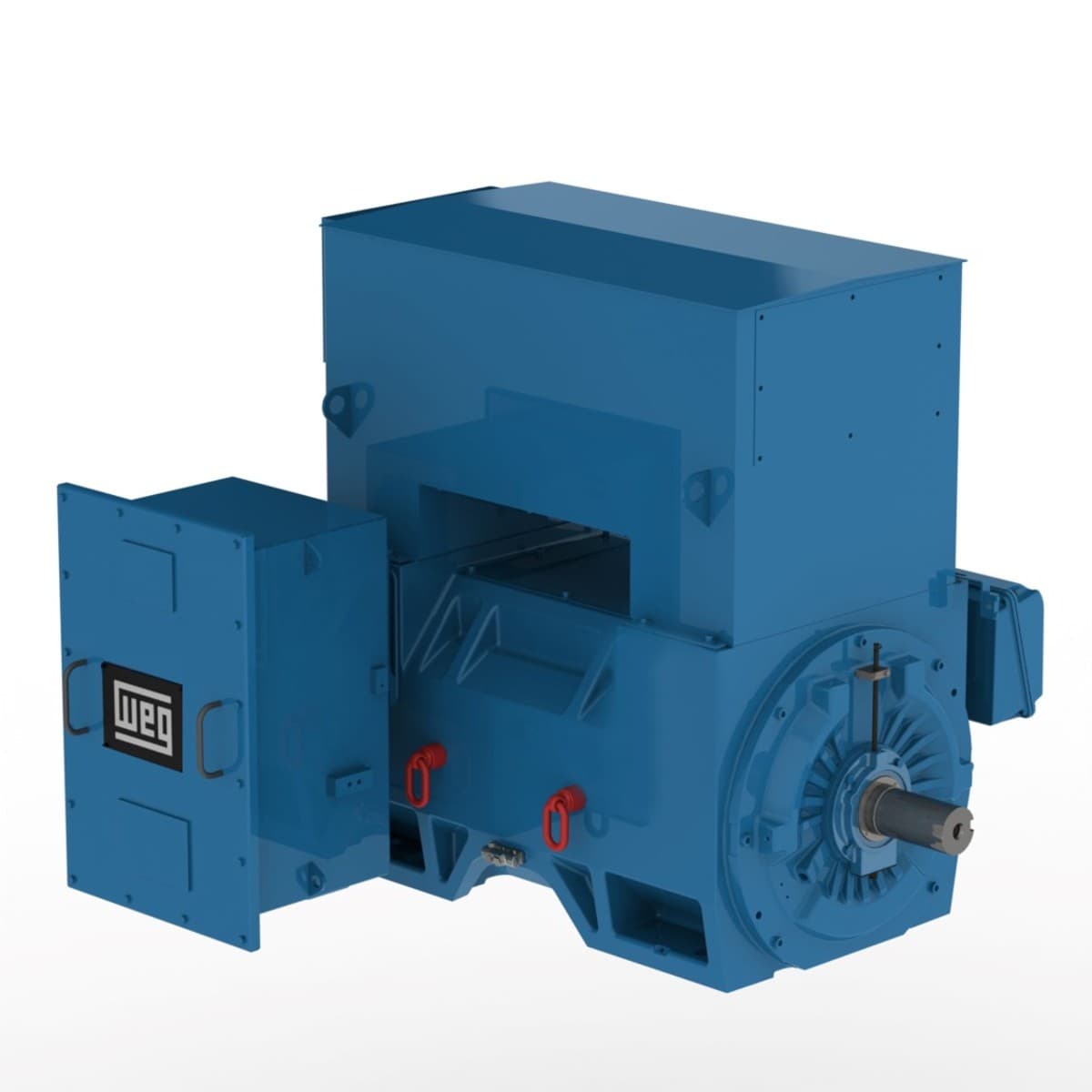

16166555 WEG AC Motors
Product Details
- Output 550 HP (400 kW)
- Moment of inertia (J) 154 sq.ft.lb
- Standard NEMA MG-1
- Terminal box¹ Left position
- L. R. Amperes 3992 A
- Service factor 1.00
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Rated speed 1782 rpm
- Insulation Class F
- Mounting F-1
- Synchronous speed 1800 rpm
- Frame 5010/11
- Locked rotor torque 100 %
- Degree of Protection IP24
- Voltage 460 V
- Number of Poles 4
- Slip 1.00 %
- No load current 214 A
- Temperature rise 80 K
- Altitude 1000 m.a.s.l.
- Noise level² 82.0 dB(A)
- Output rating 550 HP
- Rated current 614 A
- LRC 6.5x(Code G)
- Rated torque 1620 ft.lb
- Duty Cycle Cont.(S1)
- Rotation¹ CW
- Flange Without
- Frequency 60 Hz
- Locked rotor time 43s (cold) 24s (hot)
- Starting Method Direct On Line
- Rated voltage 460 V
- Breakdown torque 220 %
- Approx. weight³ 4851 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
