1SVR730210R3300 ABB Control Industrial Automation Components

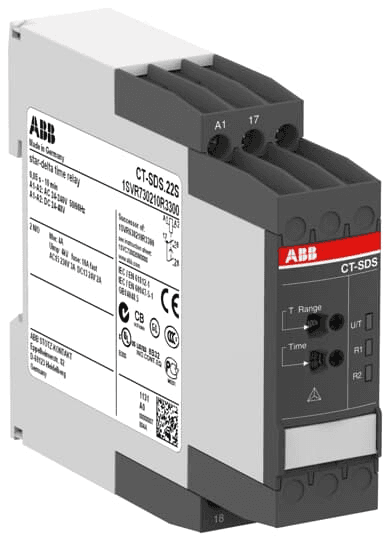

ABB 1SVR730210R3300 is an analog timer featuring star-delta electronic timing and delay relay functions with star-delta change-over. It is equipped with 2 Normally Open (NO) auxiliary contacts and has a housing speed rating of IP50 and terminal speed rating of IP20. The control voltage is suitable for DIN rail mounting. The timer supports a wide range of wire types and sizes for Normally Closed (NC) auxiliary contacts, including flexible wires from 0.5-2.5mm2 and rigid wires from 0.5-4mm2. It operates across AC circuits of 24-240 V and DC circuits of 24-48 V, with a supply voltage indicating durability for 100,000 operations. This product is a cadmium-free replacement, ensuring environmental compliance. It has analog outputs capable of 30,000,000 operations and a frame current rating varying from 0.0012 A at 24Vdc to 0.006 A at 400Vac. The net width is indicated by a green LED for control/supply voltage presence, a flashing green LED for timer activation, and 2 yellow LEDs for output relay energization. The rated apparent power ranges from 0.05s-10min / 0.05-600 s, with a screw-clamp earthing system. The control circuit operates at rated currents in a temperature range of -25°C to +60°C, and it has a weight class of C. Its protection settings include AC-12 at 4 A and AC-15 at 3 A for 230Vac, and DC-12 at 4 A and DC-13 at 2 A for 24Vdc, showcasing its versatility in various electrical environments.
