1SVR730700R0100 ABB Control Industrial Automation Components

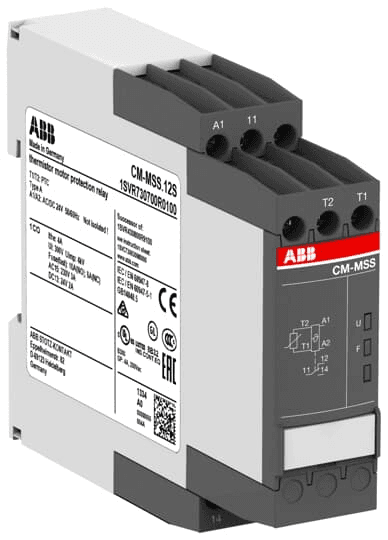

ABB 1SVR730700R0100 is an analog temperature controller designed for thermistor motor protection with an auto-reset feature. It features a Single Pole Double Throw (SPDT) contact type with a housing protection rating of IP50 and terminal protection rating of IP20. The control voltage operates on a DIN rail system, with a communication protocol width of 85.6 mm. It has a net height of 4 kV and a rated impulse voltage (Uimp) of 22.5 mm, with a protection function rating of 300 V and a rated insulation voltage (Ui) of 103.7 mm. The control circuit is rated for AC-12 at 4 A, AC-15 at 3 A for 230Vac, and DC-12 at 4 A, DC-13 at 2 A for 24Vdc. It supports a supply voltage for AC/DC 24 V and operates at a frequency of 50/60 Hz. The device is capable of 100,000 operations, with analog outputs supporting 30,000,000 operations. It accommodates various wire sizes for both flexible and rigid wires, with normally closed (NC) auxiliary contacts. The trip unit type is a screw-clamp with a minimum operating temperature of -25°C and a maximum of +60°C. The short circuit current breaking capacity (Icn) and protection settings are designed for optimal performance within specified limits. The product features a green LED for control/supply voltage presence, a red LED for fault messages, and a yellow LED when the output relay is energized. It is made from a Silver-Nickel alloy (Ag/Ni) and is cadmium-free (Cd-free).
