2CCS884001R0201 ABB Control Industrial Automation Components
Part#:2CCS884001R0201
Manufacturer:ABB Control
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

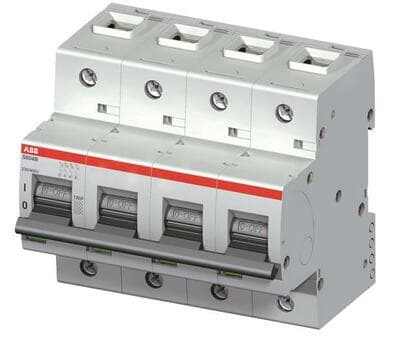

ABB 2CCS884001R0201 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections and a rated current of 20A. It operates at a rated voltage of 500Vdc and features a 4-pole (4P) configuration. The MCB has a rated impulse voltage (Uimp) of 8 kV and a rated insulation voltage (Ui) of 500 V. It is designed for DIN rail mounting and is capable of 10,000 operations. The device has a net height of 106 mm, a net width of 82.5 mm, and supports a control voltage (AC) of 440 V. It is specified for a maximum temperature of 15 kA.
Product Details
- Poles 4-poles (4P)
- Mounting mode DIN rail
- Mechanical durability (at no load) 10 000 operations
- Net Width (mm) 106 mm
- Secondary brand Stotz
- Rated current 20A
- Ultimate short circuit current breaking capacity (Icu) 25kA (240/415Vac) 15kA (254/440Vac)
- Tripping curve D
- Main function Miniature Circuit Breaker (MCB)
- Connection type Screw-clamp connections
- Size in modules (1 module = 18mm) 6 Module(s)
- Electrical durability (with load) 10 000 operations
- Rated Voltage (AC) - Phase-to-phase 440 V
- Primary brand ABB
- Functions Miniature Circuit Breaker (MCB)
- Rated Voltage (DC) 500Vdc
- Service short circuit current breaking capacity (Ics) 18kA (240/415Vac) 10kA (254/440Vac)
- Rated impulse voltage (Uimp) 8 kV
- Net Height (mm) 95 mm
- Product series / family name S800C series
- Short circuit current breaking capacity (Icn) 15 kA
- Compliant with standard(s) IEC60947-2 EN60947-2 EN60898-1
- Degree of pollution 3
- Rated insulation voltage (Ui) 500 V
- Net Depth (mm) 82.5 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
