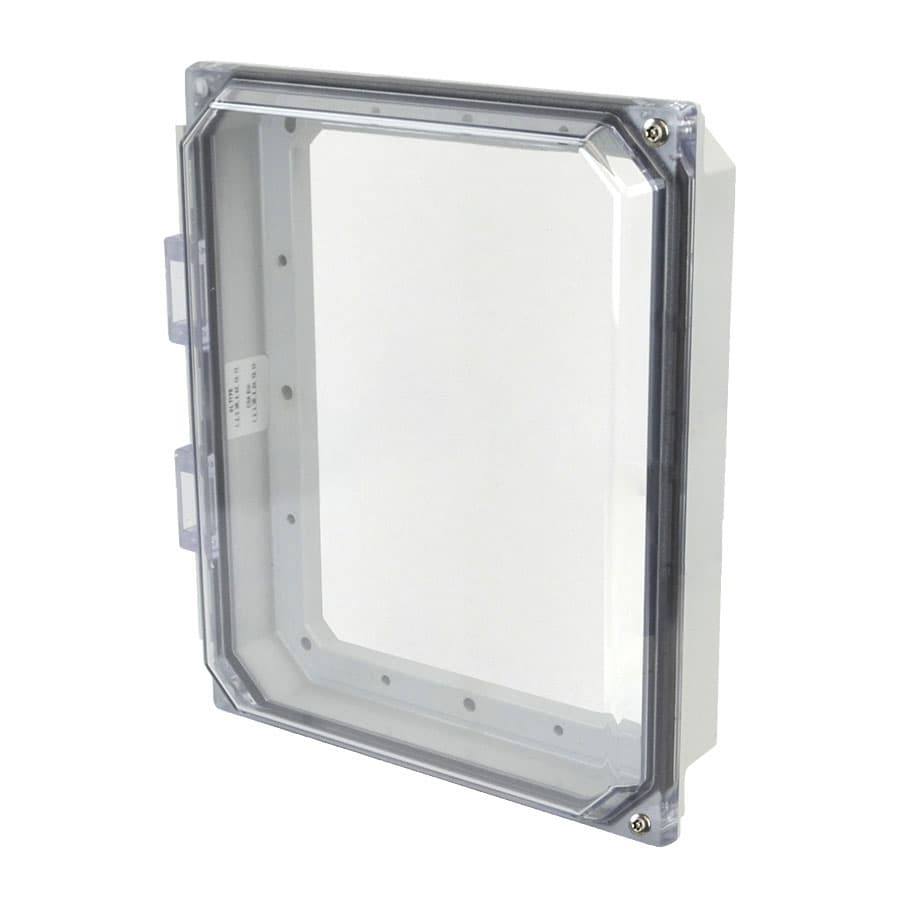

AMHMI108L Allied Moulded Products Enclosure Accessories

Product Details

• Width
  8.15 in
• Height
  9.93 in
• Depth
  0.96 in
• Material
  Polycarbonate
• Features:
  Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening size of
• Application:
  Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of NEMA 4X enclosures. No need to open the enclosure to view electronics or perform main
• Color:
  Gray (RAL 7035)
• Additional Materials:
  316 stainless steel external hardware, Polyurethane (FIP) Formed-In-Place gasket system
• Carton Quantity:
  1
• Country of Origin:
  United States of America
• Material:
  Polycarbonate frame and cover
• UNSPSC:
  39121302
• UPC:
  85339975359
• Carton Weight:
  3 lbs
• Usable Depth:
  2.27 in
• Closure Type:
  Metal Snap Latch
• Width:
  8.15 in
• Mounting Description:
  8 Screws
• Volume:
  184 cu. in.
• Cover Type:
  Opaque
Height:
9.93 in
Standards:
Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574UL® listed and recognized component for use with enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
Depth:
0.96 in
