1551 WO001 Alpha Wire Electronic Components

Name: 1551 WO001
Brand: Alpha Wire

Part#:1551 WO001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

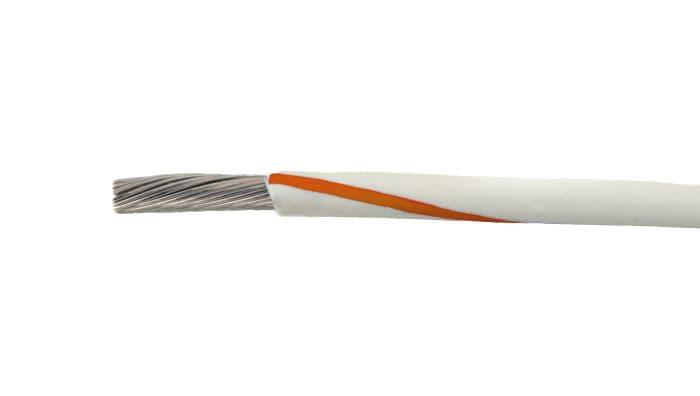

1551 WO001 - Alpha Wire MIL-W-76B/Type MW PVC Hook-Up/Lead Wire - 22 AWG - 7/30 Stranded Conductor - Tinned Copper - 1000V - White/Orange - 1000ft

Product Details

JACKET COLOR
White/Orange
TEMPERATURE
-40°F to +176°F-40°C to +80°C
VOLTAGE
1000V
CONDUCTOR STRANDING
Stranded
NOMINAL OD (IN)
0.062
MIL-SPEC
MIL-W-76B Type MW
CONDUCTOR MATERIAL
Tinned copper
INSULATION THICKNESS (IN)
0.016
MANUFACTURER PART NUMBER
1551 WO001
INSULATION MATERIAL
PVC
ADDITIONAL STANDARDS
CA Prop 65
AWG/GAUGE
22

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
