1551 WU005 Alpha Wire Electronic Components

Name: 1551 WU005
Brand: Alpha Wire

Part#:1551 WU005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

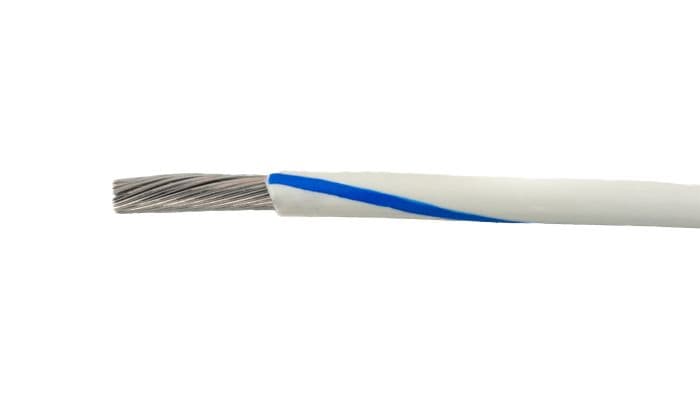

1551 WU005 - Alpha Wire MIL-W-76B/Type MW PVC Hook-Up/Lead Wire - 22 AWG - 7/30 Stranded Conductor - Tinned Copper - 1000V - White/Blue - 100ft

Product Details

AWG/GAUGE
22
NOMINAL OD (IN)
0.062
MIL-SPEC
MIL-W-76B Type MW
JACKET COLOR
White/Blue
TEMPERATURE
-40°F to +176°F-40°C to +80°C
CONDUCTOR MATERIAL
Tinned copper
MANUFACTURER PART NUMBER
1551 WU005
INSULATION MATERIAL
PVC
VOLTAGE
1000V
INSULATION THICKNESS (IN)
0.016
CONDUCTOR STRANDING
Stranded
ADDITIONAL STANDARDS
CA Prop 65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
