1561 RD005 Alpha Wire Electronic Components

Name: 1561 RD005
Brand: Alpha Wire

Part#:1561 RD005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

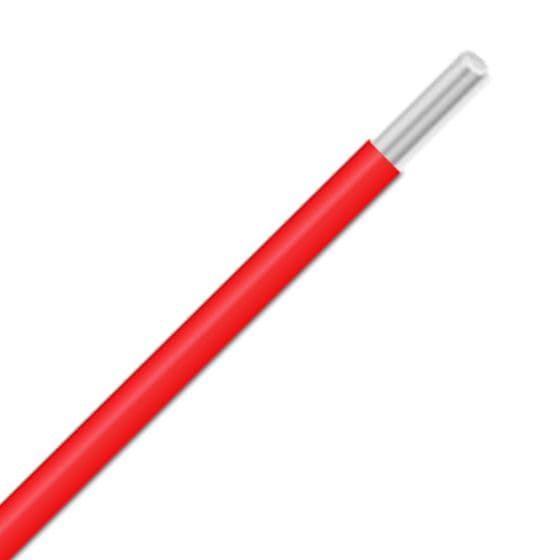

1561 RD005 - Alpha Wire MIL-W-76B/Type MW PVC Hook-Up/Lead Wire - 22 AWG - Solid Conductor - Tinned Copper - 1000V - Red - 100ft

Product Details

CONDUCTOR MATERIAL
Tinned copper
TEMPERATURE
-40°F to +176°F-40°C to +80°C
VOLTAGE
1000V
INSULATION MATERIAL
PVC
MIL-SPEC
MIL-W-76B Type MW
AWG/GAUGE
22
MANUFACTURER PART NUMBER
1561 RD005
INSULATION THICKNESS (IN)
0.016
ADDITIONAL STANDARDS
CA Prop 65
NOMINAL OD (IN)
0.057
CONDUCTOR STRANDING
Solid
JACKET COLOR
Red

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
