1561 SL005 Alpha Wire Electronic Components

Name: 1561 SL005
Brand: Alpha Wire

Part#:1561 SL005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

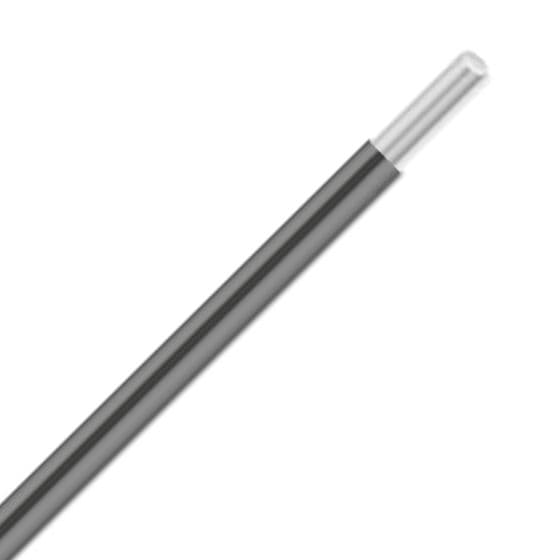

1561 SL005 - Alpha Wire MIL-W-76B/Type MW PVC Hook-Up/Lead Wire - 22 AWG - Solid Conductor - Tinned Copper - 1000V - Gray - 100ft

Product Details

AWG/GAUGE
22
INSULATION THICKNESS (IN)
0.016
MIL-SPEC
MIL-W-76B Type MW
TEMPERATURE
-40°F to +176°F-40°C to +80°C
NOMINAL OD (IN)
0.057
JACKET COLOR
Gray
VOLTAGE
1000V
CONDUCTOR MATERIAL
Tinned copper
ADDITIONAL STANDARDS
CA Prop 65
INSULATION MATERIAL
PVC
MANUFACTURER PART NUMBER
1561 SL005
CONDUCTOR STRANDING
Solid

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
