3050/1 BK001 Alpha Wire Electronic Components

Name: 3050/1 BK001
Brand: Alpha Wire

3050/1 BK001 on Advantage Electric Supply

Part#:3050/1 BK001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

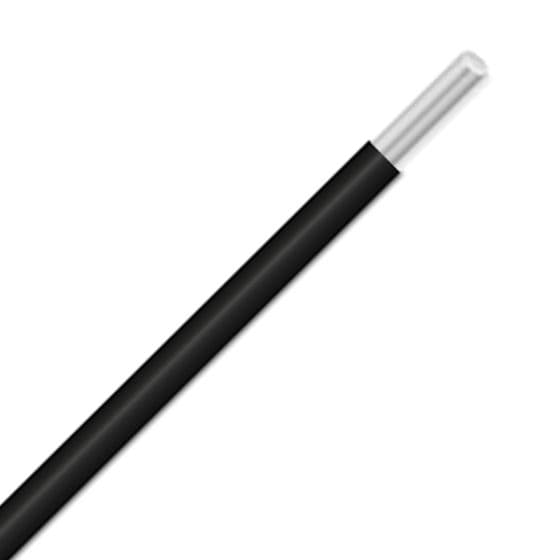

3050/1 BK001 - Alpha Wire UL 1007/UL 1569 PVC Hook-Up/Lead Wire - 24 AWG - Solid Conductor - Tinned Copper - 300V - Black - 1000ft

Product Details

JACKET COLOR
Black
CONDUCTOR STRANDING
Solid
INSULATION THICKNESS (IN)
0.016
TEMPERATURE
-40°F to +221°F-40°C to +105°C
AWG/GAUGE
24
NOMINAL OD (IN)
0.052
STANDARDS/APPROVALS
UL Approved CSA Approved
VOLTAGE
300V
MANUFACTURER PART NUMBER
3050/1 BK001
INSULATION MATERIAL
PVC
CONDUCTOR MATERIAL
Tinned copper
UL STYLE / STANDARD
UL 1007 UL 1569
CSA TYPE
CSA FT 1CSA TR 64
ADDITIONAL STANDARDS
CA Prop 65UL AWM|UL VW-1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3050/1 BK001 Related Documents

Datasheet.pdf
