3050/1 WH001 Alpha Wire Electronic Components

Name: 3050/1 WH001
Brand: Alpha Wire

3050/1 WH001 on Advantage Electric Supply

Part#:3050/1 WH001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

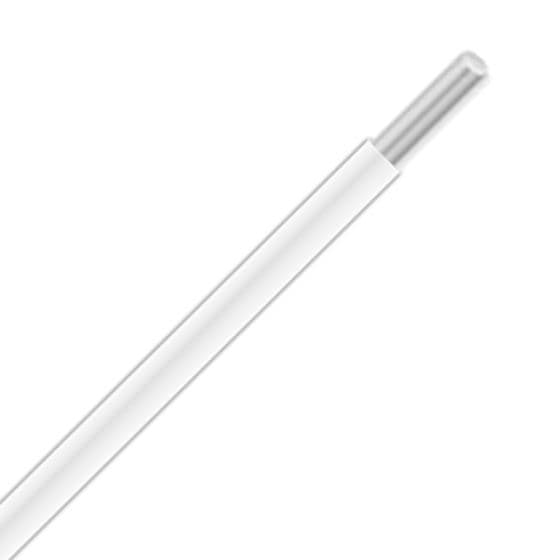

3050/1 WH001 - Alpha Wire UL 1007/UL 1569 PVC Hook-Up/Lead Wire - 24 AWG - Solid Conductor - Tinned Copper - 300V - White - 1000ft

Product Details

TEMPERATURE
-40°F to +221°F-40°C to +105°C
MANUFACTURER PART NUMBER
3050/1 WH001
CONDUCTOR STRANDING
Solid
INSULATION MATERIAL
PVC
CSA TYPE
CSA FT 1CSA TR 64
INSULATION THICKNESS (IN)
0.016
VOLTAGE
300V
UL STYLE / STANDARD
UL 1007 UL 1569
NOMINAL OD (IN)
0.052
CONDUCTOR MATERIAL
Tinned copper
JACKET COLOR
White
ADDITIONAL STANDARDS
CA Prop 65UL AWM|UL VW-1
AWG/GAUGE
24
STANDARDS/APPROVALS
UL Approved CSA Approved

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3050/1 WH001 Related Documents

Datasheet.pdf

Manufacturer warranty

3050/1 WH001 Alpha Wire

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us
