781001 BK001 Alpha Wire Electronic Components

Name: 781001 BK001
Brand: Alpha Wire

781001 BK001 on Advantage Electric Supply

Part#:781001 BK001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

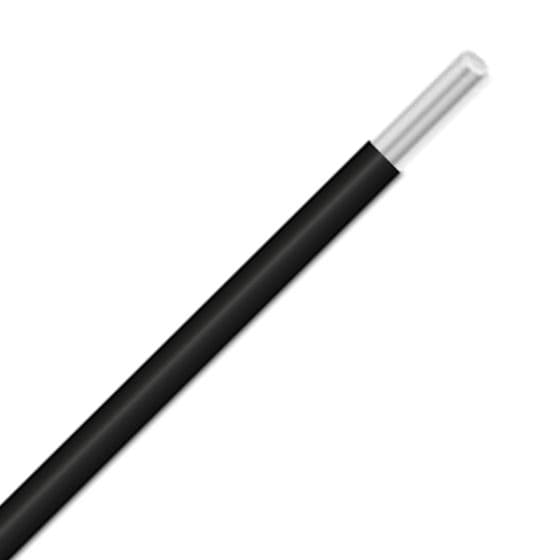

781001 BK001 - Alpha Wire UL 1015/UL 1230 PVC Hook-Up/Lead Wire - 10 AWG - Solid Conductor - Tinned Copper - 600V - Black - 1000ft

Product Details

JACKET COLOR
Black
INSULATION THICKNESS (IN)
0.032
CONDUCTOR MATERIAL
Tinned copper
ADDITIONAL STANDARDS
CA Prop 65|CE Conformance|UL AWM|UL TW|UL VW-1
CSA TYPE
CSA AWM I A/BCSA FT 1CSA TEW 105
VOLTAGE
600V
INSULATION MATERIAL
PVC
UL STYLE / STANDARD
UL 1015 UL 1230
MANUFACTURER PART NUMBER
781001 BK001
AWG/GAUGE
10
CONDUCTOR STRANDING
Solid
TEMPERATURE
-40°F to +221°F-40°C to +105°C
NOMINAL OD (IN)
0.166
STANDARDS/APPROVALS
UL Approved CSA Approved CE Approved

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

781001 BK001 Related Documents

Datasheet.pdf

Manufacturer warranty

781001 BK001 Alpha Wire
