78103 SL001 Alpha Wire Industrial Automation Components

Name: 78103 SL001
Brand: Alpha Wire

78103 SL001 on Advantage Electric Supply

Part#:78103 SL001

Manufacturer:Alpha Wire

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

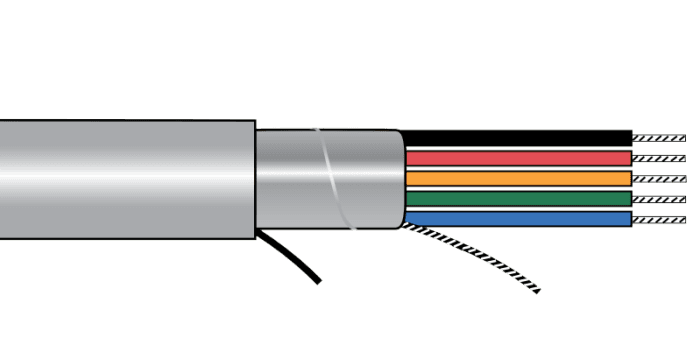

Alpha EcoCable® Mini Foil Shield Multiconductor Cable - 28 AWG 3 Conductor - Slate - 300V - 1000 ft

Product Details

JACKET COLOR
Gray
VOLTAGE
300V
NOMINAL OD (IN)
0.103
CONDUCTOR MATERIAL
Tinned copper
NOMINAL OD (MM)
2.6162
CONDUCTOR STRANDING
Stranded
STANDARDS/APPROVALS
CE Approved VW-1 UL AWM 21460
AWG/GAUGE
28
MANUFACTURER PART NUMBER
78103 SL001
SERIES
EcoCable Mini
JACKET MATERIAL
mPPE
NUMBER OF CONDUCTORS
3
TEMPERATURE
-40°C to +80°C
SHIELDING
Foil

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

78103 SL001 Related Documents

Datasheet.pdf

Manufacturer warranty

78103 SL001 Alpha Wire
