HR0300100 SL356 Alpha Wire Electronic Components

Name: HR0300100 SL356
Brand: Alpha Wire

HR0300100 SL356 on Advantage Electric Supply

Part#:HR0300100 SL356

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

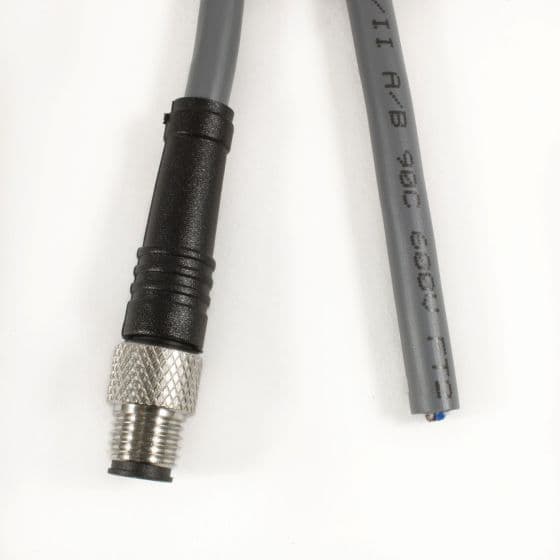

OBSOLETE - Alpha Connect EcoFlex PUR Cordset - M8 Male Straight to Cut End - 22AWG 3 Poles - HR0300100 - Slate - 1M (3.28ft)

Product Details

SERIES
Alpha Connect Flexible Cordsets
CONNECTORS
M8 Male / Wire Leads
TEMPERATURE
-58°F to +194°F -50°C to +90°C
EQUIVALENT TO
Phoenix Contact 1697548Lumberg RSMV
AWG/GAUGE
22
VOLTAGE
600V
LENGTH
1m (3.28ft)
JACKET COLOR
Gray
IP RATING
IP67 IP68
MANUFACTURER PART NUMBER
HR0300100 SL356
NUMBER OF CONDUCTORS
3
JACKET MATERIAL
Zero Halogen Polyurethane
NUMBER OF POSITIONS
3
SHIELDING
Unshielded

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

HR0300100 SL356 Related Documents

Datasheet.pdf

Manufacturer warranty
