HR03GW100 SL357 Alpha Wire Electronic Components

Name: HR03GW100 SL357
Brand: Alpha Wire

HR03GW100 SL357 on Advantage Electric Supply

Part#:HR03GW100 SL357

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

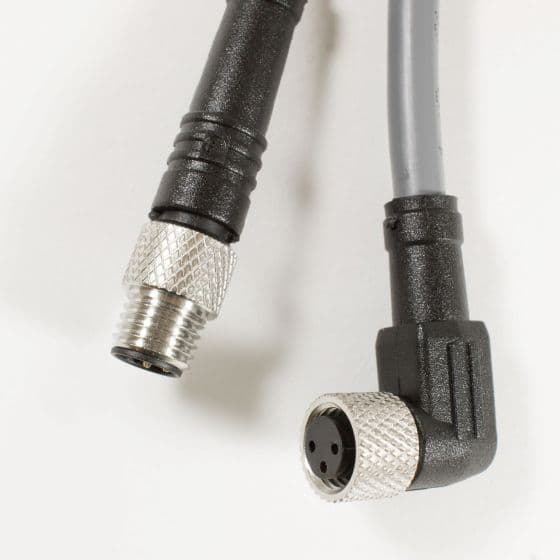

OBSOLETE - Alpha Connect EcoFlex PUR Cordset - M8 Male Straight to M8 Female 90° - 22AWG 3 Poles - HR03GW100 - Slate - 3M (9.84ft)

Product Details

SHIELDING
Unshielded
IP RATING
IP67 IP68
CONNECTORS
M8 Male / M8 Female 90 deg
TEMPERATURE
-58°F to +194°F -50°C to +90°C
NUMBER OF POSITIONS
3
VOLTAGE
600V
JACKET MATERIAL
Zero Halogen Polyurethane
MANUFACTURER PART NUMBER
HR03GW100 SL357
AWG/GAUGE
22
EQUIVALENT TO
Phoenix Contact 1697645Lumberg RSMV
JACKET COLOR
Gray
SERIES
Alpha Connect Flexible Cordsets
NUMBER OF CONDUCTORS
3
LENGTH
3m (3.84ft)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

HR03GW100 SL357 Related Documents

Datasheet.pdf

Manufacturer warranty
