M16104RW-SL199 Alpha Wire Electronic Components
Part#:M16104RW-SL199
Manufacturer:Alpha Wire
Category:Electronic Components
Product Lifecycle:Active
Product description

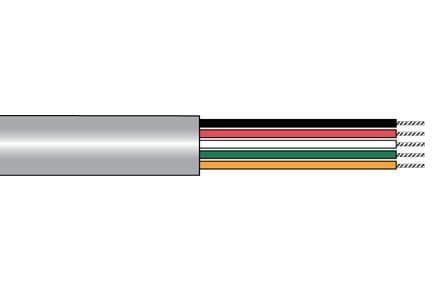

Alpha M16104RW-SL199 PVC Control Cable for Stationary or Minimal Flex Applications - 16 Awg 4 Conductor - Red Conductor Insulation
Product Details
- MANUFACTURER PART NUMBER M16104RW-SL199
- WEIGHT LBS/MFT 0.083
- NOMINAL OD (IN) 0.35
- VOLTAGE 600V
- STANDARDS/APPROVALS CSA AWM CE LVD 2006/95/EC PLTC UL PLTC UL MTW UL TC-ER UL WTTC
- APPLICATION Factory equipment interconnects; Robotics; Automotive assembly equipment; Conveyor systems; Control panels; Automated pick-and-place systems; PLC-controlled equipment; Automated handling systems
- STATIC TEMPERATURE RATING -5°C to +90°C
- ATTRIBUTES Oil and chemical resistanceUV resistanceDirect burialAbrasion resistanceEMI protectionStationary or minimal flex
- DYNAMIC TEMPERATURE RATING -25°C to +90°C
- NOMINAL OD (MM) 8.89
- JACKET MATERIAL PVC
- JACKET COLOR Slate
- AWG/GAUGE 16
- SHIELDING Unshielded
- STRAND COUNT 26X30
- CONDUCTOR MATERIAL Bare copper
- NUMBER OF CONDUCTORS 4
- CONDUCTOR STRANDING Stranded
- CONDUCTOR COLOR Red conductor insulation-numbered 1 green/yellow conductor 1 white-striped neutral
- SERIES Industrial Series M
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
