Name: ML60.242
Brand: Puls
Price: 210 USD
Availability: InStock

ML70.100

PULS ML70.100 is a power supply unit designed for AC/DC conversion and is suitable for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3A at 24Vdc and features spring-clamp connections for ease of installation. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac for AC (with manual selection) and 213Vdc-377Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The ML70.100 measures 45mm in width, 75mm in height, and 91mm in depth, and is housed in a PC / ABS blend for durability. It provides a rated power of 72W and an adjustable output voltage range of 24Vdc-28Vdc. Protection is ensured through an NTC for input inrush current limiting. The unit boasts an efficiency of 0.915 with a 230Vac input and has a maximum inrush current consumption of 26A at 120Vac input and 30A peak at 230Vac input. Power dissipation is calculated at 8.7W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

CP10.241

Verified stock: 4

PULS CP10.241 is a DIN rail mounting power supply unit housed in an aluminium casing, designed to operate within an ambient air temperature range of -25 to +70°C. It features a net width of 39 mm and offers a degree of protection rated at IP20. The unit consumes current at rates of 1.13A with a 230Vac input, 2.15A with a 120Vac input, 2.6A with a 100Vac input, and 2.35A with a 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 11A and 7A for 230Vac and 120Vac inputs respectively. Efficiency rates are noted at 0.952 for 230Vac input and 0.936 for 120Vac input. Dimensions are specified as W39mm x H124mm x D117mm. The unit exhibits a start-up delay of 240-300ms for 100-230Vac input, with rise times of 30ms and 160ms under specified conditions. It includes protection functions against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart features. Series or parallel operation is supported for increased output voltages or power, including 1+1 redundancy with a redundancy module. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W and 16.4W for 230Vac and 120Vac inputs respectively, with an output stage capacitance of 4400µF. Electrical durability spans from 75,000 to 499,000 hours under various conditions. Ripple is maintained at 50mVpp. This AC/DC power supply unit, part of the CP-series, is designed with ATEX approval, a 20% power reserve, and a DC-OK relay contact output. Connection is facilitated via screw-clamp connections. Supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. Rated current is 12A at 48Vdc in temperatures up to +45°C, with adjustments for higher temperatures. It operates on a single-phase (1AC) or DC network, providing a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with a linear derating between +60°C and +70°C. The output voltage is adjustable between 24Vdc and 28Vdc, featuring a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input.

Puls

ML30.241

Verified stock: 1

PULS ML30.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabilities. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 1.3A at 24Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and frequencies, with specific turn-ON and shutdown voltages at 46Vac and 44Vac, respectively. Additionally, it can accept DC supply voltages between 88Vdc and 375Vdc. The ML30.241 is housed in a PC/ABS blend material and is suitable for single-phase (1AC) or DC networks. It measures 23mm in width, 75mm in height, and 91mm in depth. The unit's rated power is 30W, and it offers an adjustable output voltage range from 24Vdc to 28Vdc. It incorporates an NTC for input inrush current limiting, achieves an efficiency of up to 0.894 depending on the input voltage, and has a maximum inrush current consumption of 35A at 230Vac input. The power supply features a 90ms start-up delay, with rise times varying based on input conditions and load capacitance. Power dissipation is noted at 3.7W, and it boasts an electrical durability of at least 174,000 hours at +40°C. The ripple is maintained at 50mVpp across a 20Hz to 20MHz range, and the output stage capacitance is 900µF.

Puls

QS5.DNET

Verified stock: 1

PULS QS5.DNET is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and is a NEC Class 2 DeviceNet approved unit featuring a DC-OK relay contact output. The unit provides a rated current of 3.8A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 360Vdc, with specific turn-on and shutdown voltages detailed for both AC and DC inputs. The QS5.DNET, part of the Q-series, measures 40mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 91.2W and a fixed output voltage of 24Vdc. Protection features include output overvoltage protection and mechanisms for handling overload, short-circuit conditions, and back-feeding loads. The unit boasts high efficiency rates varying with input voltage, specific current consumption peaks, and detailed time delays for start-up and rise times, alongside hold times for buffer periods. Power dissipation losses are provided for different input conditions, and the electrical durability is specified under various operational conditions. The output stage capacitance is 3500µF, and the ripple is maintained at 50mVpp across a wide frequency range.

Puls

QS10.301

Verified stock: 0

PULS QS10.301 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion capabilities with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 8.6A at 28Vdc, 8A at 30Vdc, and 7.5A at 32Vdc, with spring-clamp connections for secure attachment. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, accommodating various network types including single-phase (1AC) or DC. The QS10.301 is housed in an aluminium casing, measuring 60mm in width, 124mm in height, and 117mm in depth. It delivers an adjustable output voltage of 28Vdc-32Vdc, with a rated power of 240W and a short-term capacity of 360W for up to 4 seconds. Protection features include output overvoltage protection and active input inrush current limiting, with overload and short-circuit protection ensuring operational stability. The unit is designed for series or parallel operation to increase output power, with a high efficiency of up to 0.935 depending on the input voltage. It exhibits a peak current consumption of 10A, a start-up delay of 340-800ms, and a hold time of 23ms at 230Vac input. Power dissipation is noted at 16.7W for 230Vac input under full load. The QS10.301 demonstrates electrical durability with operational lifespans ranging up to 200,000 hours under specific conditions, and features a ripple of 50mVpp across a wide frequency range, with an output stage capacitance of 7000µF.

Puls

ML60.121

Verified stock: 0

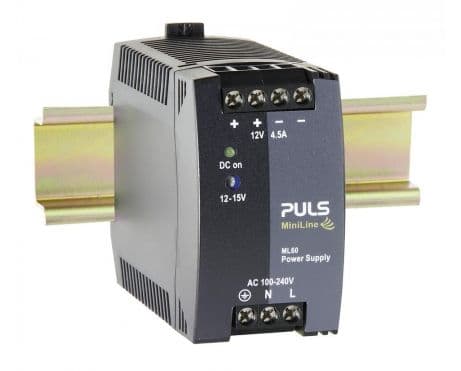

PULS ML60.121 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 4.5A at 12Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 75Vac turn-ON voltage and a 65Vac shutdown voltage) and 88Vdc to 375Vdc (with nominal values from 100Vdc to 250Vdc), making it versatile for various electrical environments. The ML60.121 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend for durability. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 54W and an adjustable output voltage range from 12Vdc to 15Vdc, with a 200mV turn-ON overshoot. Protection is provided by an NTC (input inrush current limiter), and the unit boasts an efficiency of 0.872 at 230Vac input, 0.853 at 120Vac input, and 0.835 at 100Vac input. Current consumption peaks at 16A max inrush (at 120Vac input) and 32A peak max inrush (at 230Vac input), with a 90-120ms start-up delay and a 40-50ms/90-110ms rise time under nominal input conditions. Power dissipation/losses are calculated at 7.9 W, with an electrical durability of 56,000 hours at +40°C. The output stage ripple is 50mVpp (20Hz to 20MHz; 50Ω), and the capacitance at the output stage is 3000µF.

Puls

ML60.241

Verified stock: 0

PULS ML60.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is designed according to NEC Class 2 standards. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 75Vac turn-ON voltage and a 65Vac shutdown voltage) and 88Vdc to 375Vdc for DC supply, accommodating single-phase (1AC) or DC networks. The ML60.241 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC/ABS blend for durability. It delivers a rated power of 60W with an adjustable output voltage range of 24Vdc to 28Vdc, featuring a 200mV turn-ON overshoot. Protection is provided by an NTC for input inrush current limiting. Efficiency rates vary by input voltage, achieving 0.897 at 230Vac, 0.878 at 120Vac, and 0.865 at 100Vac. It has a maximum inrush current consumption of 16A at 120Vac input and 32A peak at 230Vac input. The unit exhibits a 170ms start-up delay, with rise times of 50-60ms under nominal input and constant full current load without load capacitance, and 110-140ms with 2.5mF load capacitance. Power dissipation is noted at 6.9W, and it has an electrical durability of at least 128,000 hours at +40°C. Ripple is maintained at 50mVpp across 20Hz to 20MHz at 50Ω, with an output stage capacitance of 1600µF.

Puls

ML60.122

Verified stock: 0

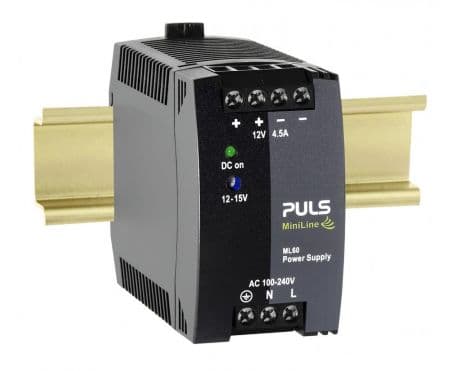

PULS ML60.122 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -40 to +70°C and is designed for NEC Class 2 operation in cold environments down to -40°C. This unit has a rated current of 4.5A at 12Vdc and utilizes screw-clamp connections for connectivity. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) and from 88Vdc to 375Vdc, featuring a turn-ON voltage of 75Vac and a shutdown voltage of 65Vac. The ML60.122 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend. It is compatible with single-phase (1AC) or DC networks, has a rated power of 54W, and offers an adjustable output voltage range of 12Vdc to 15Vdc with a 200mV turn-ON overshoot. The unit's protection functions include an active input inrush current limiter. Efficiency rates vary based on input voltage, with 0.876 at 230Vac, 0.858 at 120Vac, and 0.841 at 100Vac. It features a peak current consumption of 6A at 230Vac input, with specific time delays for start-up and rise times under different conditions. Power dissipation is noted at 7.6W, and the electrical durability is rated at a minimum of 56,000 hours at +40°C. The ripple is specified at 50mVpp across a 20Hz to 20MHz range with a 50Ω load, and the output stage capacitance is 3000µF.

Puls
