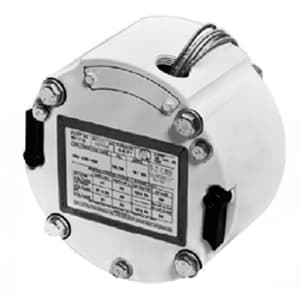

56DBEC-6-MA-115/230 60HZ Baldor Electric Company Mechanical Brakes, Clutches & Torque Limiters
Part#:56DBEC-6-MA-115/230 60HZ
Alt. Part#:31913
Manufacturer:Baldor Electric Company
Category:Mechanical Brakes, Clutches & Torque Limiters
Product Lifecycle:Active
Product description
Brake; Electrical Activation; Straight | Finished Bore; 5/8" Bore; Hollow Bore Input; C-Face | Shaft Mount; 115/230VAC Voltage; Bidirectional Rotation; Static Torque 6Lb-ft
Product Details
- Brand BALDOR-RELIANCE
- Input Type Hollow Bore
- Output Type Not Applicable
- Bore Profile Straight | Finished
- Motion Type Stopping | Holding
- Mounting Frame Profile NEMA 4X
- Weight / Kilogram 5.857
- Mounting Method C-Face | Shaft
- Actuation/Return Coil
- Mounting Frame Size 56C
- Phase Single Phase
- Activation Electrical
- Minimum Buy Quantity N/A
- Direction of Rotation Bidirectional
- Product Series D
- Resistance Ohm 562Ohm
- Housing Style Cylindrical
- Other Features Splined Hub | Food Duty | Manually Wear Adjusted | Rugged | Class B Insulation
- Torque Static Torque 6Lb-ft
- Product Name Brake
- Shaft-Thru/End End
- Enclosure E-Z KLEEN
- Lead Wire Position External
- Power Off Status Engagement
- Number of Friction Discs 1
- Bore 0.625 Inch | 15.875 Millimeter
- Number of Stop Collars 0
- Frequency Hz 60
- Product Type Friction Disc | Wave Spring
- Weight / LBS 14.4
- Voltage Rating 115/230VAC
- Inch - Metric Inch
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
56DBEC-6-MA-115/230 60HZ Baldor Electric Company
