GCF5X01AA Baldor Electric Company Mechanical Components
Part#:GCF5X01AA
Manufacturer:Baldor Electric Company
Category:Mechanical Components
Product Lifecycle:Active
Product description

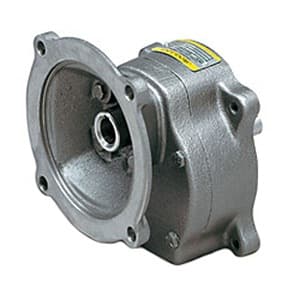

Speed Reducer; Inline Type; 5:1 Nominal Ratio; 56C Frame; C-Face Quill Input; Shaft Output; Helical Gear; GCF Series; Flange Mounted; 5/8" Input Shaft Diameter; Cast Iron; 194In-Lbs Output Torque
Product Details
- Nominal Ratio 5:1
- Manufacturers Series GCF
- Output Torque value plus um 194In-Lbs
- Bolt Hole Diameter 0.375 Inch | 9.525 Millimeter
- Reducer Type Inline
- Output Type Shaft
- Brand BALDOR-RELIANCE
- Minimum Buy Quantity N/A
- Fan Cooling No
- Weight / LBS 19
- Overall Length 6.83 Inch | 173.482 Millimeter
- Nominal Max Output RPM 350
- Mounting Method Flange Mounted
- Housing Material And Finish Cast Iron
- Output Shaft Diameter 0.625 Inch | 15.875 Millimeter
- Weight / Kilogram 8.62
- Mounting Position Universal
- Inch - Metric Inch
- UNSPSC 26111538
- Maximum Overhung load value And um 247Lbs
- Input Shaft Diameter 0.625 Inch | 15.875 Millimeter
- Tradename 0
- Input Type C-Face Quill
- Mounting Bolt Pattern footprint Square
- Other Features Ratio Multiplier
- Motor Included No
- Gearing Helical
- Overall Height 7.03 Inch | 178.562 Millimeter
- Mounting Frame 56C
- Input Rating value plus um 1.13HP
- Output RPM at 1750 RPM Input 350
- Nominal Max Input Rating 1HP
- Base Included No
- Output Shaft Length 1.93 Inch | 49.022 Millimeter
- Overall Width 5.81 Inch | 147.574 Millimeter
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
